Lighting Development Kits

MCP1630 Boost Mode LED Driver Demo Board

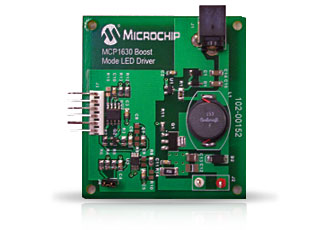

MCP1630 Boost Mode LED Driver Demo Board

Part Number: MCP1630DM-LED2
Devices Supported: MCP1630V, PIC12F683, MCP1702

The MCP1630 Boost Mode LED Driver Demo Board is a step-up, switch-mode, dc-dc converter used for power LED applications. The demo board provides a 350 mA or 700 mA constant current source with a jumper selection. The input operating voltage range is 9VDC – 16VDC and the board can supply up to 30W to a string of power LEDs.

Features:

  • PCB with 5 LEDs provide for evaluation
  • Compact size with high output power
  • High efficiency over entire operating input voltage range
  • Selectable 350 mA or 700 mA output current
  • Up to 30W output power
  • Optional software dimming control
  • 500 kHz switching frequency can be changed in firmware
  • Additional application functions can be provided in firmware

Other Requirements:

  • For operation with supplied LEDs, Microchip's 9V, 700 mA power supply P/N AC162039 or equivalent is required
  • For operation at full rated power, a 12V, 3A power supply is recommended
Check Stock and Price

MCP1650 3W White LED Demo Board

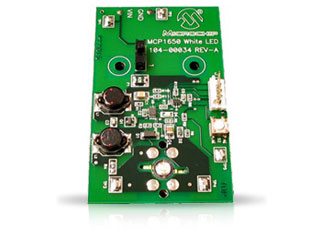

MCP1650 3W White LED Demo Board

Part Number: MCP1650DM-LED1
Devices Supported: MCP1650, MCP1651

The MCP1650 3W White LED Demo Board demonstrates Microchip’s MCP165X Boost Controller product family in a battery powered white LED application. The MCP1651 (8-pin MSOP) with low battery detect is featured in a SEPIC converter topology with an input voltage range of 2.0V to 4.5V.

Features:

  • MCP1651 in a SEPIC application configured in Bootstrap mode. This application circuit regulates the output to 3.6V while delivering 700mA of current as the input voltage varies from 2.0V to 4.5V
  • Dimming and flashing modes are provided by a PIC10F206 microcontroller
  • Program connector allows access to the PIC10F206 program code via Microchip’s ICD 2 In-Circuit Debugger
Check Stock and Price

MCP1252 Charge Pump Backlight Demo Board

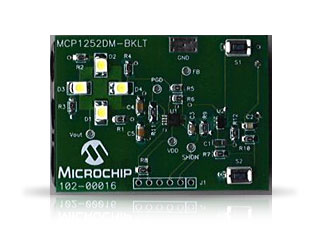

MCP1252 Charge Pump Backlight Demo Board

Part Number: MCP1252DM-BKLT
Devices Supported: MCP1252

The MCP1252 Charge Pump Backlight LED Demo Board demonstrates the use of a Charge Pump device in an LED application. The board also serves as a platform to evaluate the MCP1252 device in general. The MCP1252-ADJ is an excellent choice for biasing the back lighting or driving other LED applications. Light intensity is controlled uniformly through the use of ballast resistors. The peak intensity is set by the feedback to the MCP1252-ADJ. Dimming is accomplished by pulse-width modulating the shutdown pin of the device.
The board also feature a PIC10F206 microcontroller in a SOT23 package, which is used to provide an enable signal to the MCP1252. The PICmicro also accepts a push-button input that allows the user to adjust the white LEDs to five different light intensities, in addition to placing the system in a standby mode that consumes less than 1 uA of current (typical).

Features:

  • Programmed MCP1252 Charge Pump control (via the PIC10F206)
  • Four white LEDs
  • PIC10F206 microcontroller:
    • Enables the MCP1252 Charge pump
    • Controls light intensity
    • Places system into sleep mode (< 1 uA)
  • Push-button interface for multiple control options
  • Baseline Flash Microcontroller Programmer (BFMP) Header for reprogramming the PIC10F206
  • 3 AAA Battery Pack (Batteries not included)
Check Stock and Price

MCP1631HV Digitally Controlled Programmable Current Source Reference Design

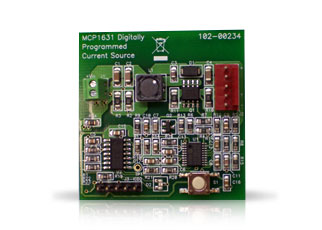

MCP1631HV Digitally Controlled Programmable Current Source Reference Design

Part Number: MCP1631RD-DCPC1
Devices Supported: MCP1631HV, PIC16F616

The MCP1631HV Digitally Controlled Programmable Current Source Reference Design is used to drive and dim one or more power LEDs in a series or parallel topology (depending on the LED’s capability). The reference design may also be used to charge one to four cell NiMH/NiCd or one to two cell Li-Ion battery packs. The board uses the MCP1631HV high-speed analog PWM controller and PIC16F616 microcontroller to generate the proper dimming ratio for LEDs or charge algorithm for NiMH, NiCd and Li-Ion batteries. The boards is used to evaluate Microchip’s MCP1631HV in a SEPIC power converter application.

Features:

  • Input Operating Voltage Range: +3.5V to +16V
  • Firmware default output current of 700 mA with dimming ratio 10:1 (70 mA/step)
  • Maximum output current of 1000 mA
  • Maximum output power of 8.5W
  • Drive one or more LEDs
  • Firmware for charging Li-Ion, NiMH, and NiCd batteries
  • Single ON/OFF/Dimming switch
  • Status and fault indication
  • Hardware and software overvoltage protection (OVP) set to 9.0V. The software value can be modified in the source code to be less than 9.0V
Check Stock and Price

Digital LED Lighting Development Kit

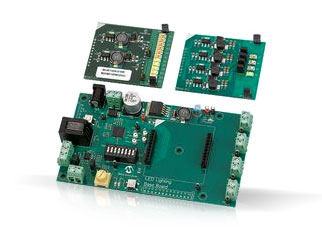

Digital LED Lighting Development Kit

Part Number: DM330014

LED lighting designers are being challenged to meet the rapidly expanding demand for green, smart energy technologies while differentiating their products. Microchip’s Digital LED Lighting Development Kit (DM330014) enables designers to quickly leverage the capabilities and performance of the dsPIC33 ‘GS’ series of Digital Signal Controllers (DSCs), to develop LED lighting products. The dsPIC33 ‘GS’ DSC and this reference design allow developers to create a 100% digitally controlled ballast function, while including advanced features such as dimming and color hue control. The dsPIC33 ‘GS’ DSCs can support an entire system implementation for LED lighting products, including power-conversion circuits, such as AC-to-DC and DC-to-DC conversion, along with functions such as Power Factor Correction (PFC), which are necessary for a complete product and lower the overall system cost.

Benefits offered by the digital-power techniques in this reference design and the dsPIC33 ‘GS’ series of DSCs include:

Example Applications:

  • Color control for RGB LEDs
  • Supports DMX512 Standard for brightness control
  • Flexible input voltage support, including both Buck and Boost topologies
  • Fully dimmable
  • Full digital control
  • Fault protection
  • Fully controlled with a single dsPIC33FJ16GS504 DSC
  • Reduced System Cost via higher integration
  • Higher Efficiency using digital-control techniques
  • Flexible and reusable designs
  • Advanced features implemented in software
Check Stock and Price

Automotive Ambient Lighting Module Reference Design

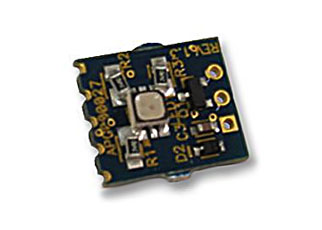

Automotive Ambient Lighting Module Reference Design

Part Number: APGRD004

The Ambient Lighting Module Reference Design offers a compact solution to control a RGB (Red, Green, Blue) LED over a LIN network. A RGB LED module can be used for illumination, backlighting or indication in a vehicle.

This reference design uses a low end 8-bit microcontroller to implement:

  • RGB LED color mixing (16,383 colors) and intensity (1023 levels)
  • A LIN Protocol module allowing for intersystem communication within the door module as well as the main body controller.

The kit contains 4 modules, which can also be used in conjunction with the APGDT001 LIN Serial Analyzer to quickly create a working LIN network straight out of the box.
