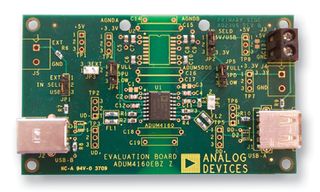

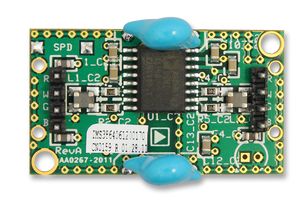

ANALOG DEVICES - EVAL-ADUM4160EBZ - ADUM4160, USB ISOLATOR, EVAL BOARD

ANALOG DEVICESEVAL-ADUM4160EBZ
Image is for illustrative purposes only.
Please refer to product description
Manufacturer:
ANALOG DEVICES
Order Code:
1835399
Manufacturer Part No:
EVAL-ADUM4160EBZ

Technical Data Sheet (543.03KB) EN
Technical Data Sheet (543.03KB) EN

Product Information
  • ADUM4160, USB ISOLATOR, EVAL BOARD
  • Silicon Manufacturer: Analog Devices
  • Silicon Core Number: ADuM4160
  • Kit Application Type: Interface
  • Application Sub Type: Isolator
  • Kit Contents: Evaluation Board ADUM4160
  • Features: Support Low and Full Speed Communications, Enumeration Control, External ESD Protection
  • SVHC: No SVHC (16-Jun-2014)
  • Core Architecture: Interface
  • Core Sub-Architecture: USB Port Isolator
  • Kit Features: Support Low and Full Speed Communications, Enumeration Control, External ESD Protection
  • MCU Supported Families: ADuM3160, ADuM4160
  • Type: USB Isolator
Evaluation Board for iCoupler ADuM4160/ADuM3160 USB Digital Isolator
The EVAL-ADUM4160 is an USB isolator board for the iCoupler ADUM4160. The USB isolator evaluation board has been constructed to allow easy interface to existing applications by standard cabling or discrete wiring. The board allows configuration of all the features of the ADuM4160 chips as well as provides support for a variety of possible power schemes. The evaluation board also allows common mode voltages but is not recommended for performing safety related testing such as high voltage withstand testing. This type of testing should be performed on the component level or on a production board. The ADuM4160 provide support for full speed and low speed data communications by interfacing directly with the USB xD+ and xD? lines. The parts are designed to be transparent to USB data traffic other than adding about as much delay as a hub and cable.
  • It connects to systems through standard USB type A and type B connectors
  • It draws power from the USB host or from an external 5.0V or 3.3V power supply
  • It supports isolated power for the downstream interface through an ADuM5000 isoPower
  • It provides test points for all power and signal paths
  • It supports low and full speed communications
  • It supports enumeration control
  • It supports external ESD protection
  • It supports common-mode chokes in xD+/xD?
  • It supports ferrite inductors in Vbusx and GNDx lines
  • Communications & Networking
  • Consumer Electronics
