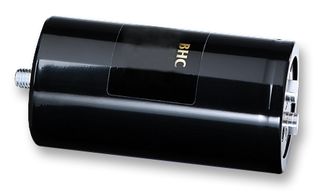

BHC COMPONENTS - ALS31A153DB040 - CAP, ALU ELEC, 15000UF, 40V, SCREW

BHC COMPONENTSALS31A153DB040
Image is for illustrative purposes only.
Please refer to product description
Manufacturer:
BHC COMPONENTS
Order Code:
776920
Manufacturer Part No:
ALS31A153DB040

Technical Data Sheet (142.07KB) EN
Technical Data Sheet (142.07KB) EN

Product Information
  • CAP, ALU ELEC, 15000UF, 40V, SCREW
  • Product Range: BHC COMPONENTS - Série ALS31
  • Capacitance: 15000µF
  • Capacitance Tolerance: ± 20%
  • Voltage Rating: 40V
  • Diameter: 36mm
  • ESR: 0.017ohm
  • Height: 62mm
  • Lead Spacing: 12.7mm
  • Lifetime @ Temperature: 11000 hours @ 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 80°C
  • SVHC: No SVHC (16-Dec-2013)
  • AC Ripple Current @ 100Hz: 9.5A
  • AC Ripple Current @ 10kHz: 10.0A
  • Capacitance Tolerance ±: ± 20%
  • Climatic Category: 40/085/56
  • ESR Frequency: 100Hz
  • ESR Temperature: 20°C
  • External Length / Height: 62mm
  • Leakage Current: 360µA
  • No. of Pins: 3
  • Operating Life Temperature: 85°C
  • Operating Temperature Range: -40°C to +80°C
  • Operating life Time: 11000h
  • Ripple Current AC: 9.5A
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 85°C
  • Terminal Type: M5 Stud
  • Thread Size: M8
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 40V

Availability

Availability: SG 0 UK 180

Price For: 1 Each

Minimum Order Quantity: 1

Order Multiple Quantity: 1

Unit Price: S$22.91

  1. Qty

Price

Qty List Price
1  - 49 S$22.91
50  - 74 S$19.80
75+  S$18.28
