CIRCUITCO  BB-BONE-000  Beaglebone Development Kit based on AM335x Processor

CIRCUITCO BB-BONE-000
Technical Data Sheet (2.79MB) EN See all Technical Docs

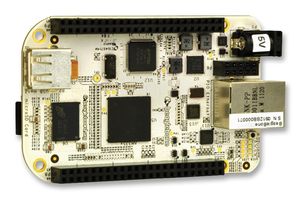

Image is for illustrative purposes only. Please refer to product description.

CIRCUITCO BB-BONE-000
Video
360°

Product Overview

The BB-BONE-000 BeagleBone is the low-cost, high-expansion focused Beagleboard using a low cost AM335x Cortex A8 ARM processor. It is similar to the earlier Beagleboards and can act as a USB or Ethernet connected expansion companion for current Beagleboard and Beagleboard-xM or work stand-alone. The BeagleBone is small even by Beagleboard standards and with the high performance ARM capabilities user will expect from a Beagleboard, the BeagleBone brings full-featured Linux to places it has never gone before.
  • 700MHz superscalar ARM Cortex-A8
  • 256MB DDR2 RAM
  • 1 port USB 2.0 host
  • Integrated 10/100 Ethernet
  • MicroSD slot, 2GB microSD card with validation and demonstration of image from Angstrom Distribution
  • USB 2.0 flexible device port with ability to supply power
  • On-Board USB to serial/JTAG over shared USB device port
  • 3.3V 2× 46 pin peripheral with multiplexed LCD signals and battery-control expansion headers
  • Board size: 3.4" × 2.1"
  • Development with Ubuntu android, Open Embedded, Windows Embedded, QNX, Symbian, Debian, Fedora etc
Do not plug the card out to remove it or may damage the connector.



Product Information

Features:
256MB DDR2 RAM, 2.0 USB, ETHERNET PORT, Micro SD CARD-SLOT, JTAG VIA USB
Kit Contents:
Development Board & Software
Product Range:
-
SVHC:
To Be Advised
Silicon Manufacturer:
Texas Instruments

Find similar products  grouped by common attribute

Applications

  • Multimedia;
  • Communications & Networking;
  • Imaging, Video & Vision;
  • Audio;
  • Consumer Electronics;
  • Building Automation;
  • Portable Devices;
  • Signal Processing;
  • Industrial

Contents

BeagleBone board, USB Cable, 4GB uSD card with SW and documentation

Legislation and Environmental

Country of Origin:
United States

Country in which last significant manufacturing process was carried out

Tariff No:
84733080
Weight (kg):
.25

Alternatives

BEAGLEBONE BLACK REV C, CORTEX A8

ELEMENT14

13,225 in stock

Price for: Each

1+ S$69.00 50+ S$64.73 250+ S$64.19

Buy

AC/DC Power Supply, Medical, Fixed, 1 Output, 90 V, 264 V, 10 W, 5 V

ARTESYN EMBEDDED TECHNOLOGIES

263 in stock

Price for: Each

1+ S$20.91 5+ S$20.34 10+ S$19.21 25+ S$18.08 more…

Buy

Similar Products

Find products functionally similar to this one. Select one of the following links, and you will be taken to a product group page that presents all products in this category that share the given attribute.

  • Kit Contents: Development Board & Software
  • Silicon Core Number: AM3359
  • Core Architecture: ARM Cortex A8
  • Silicon Family Name: ARM
  • Product Range: -
  • Core Sub-Architecture: AM3359
  • Silicon Manufacturer: Texas Instruments
