Scrap the toys. Get a real oscilloscope!

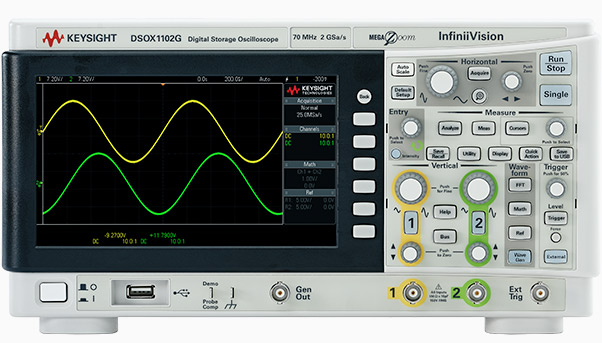

Introducing the NEW Keysight Infiniivision 1000 X-Series Oscilloscopes!
Keysight’s InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices. Now it’s easy to get professional measurements and expertise at your fingertips.
Don’t settle for less – and test to impress.
Have confidence in your measurements with Keysight custom technology that leverages more than 60 years of oscilloscope expertise.
- 50 MHz to 100 MHz
- More signal detail with 50,000 wfms/sec update rate
- Professional measurements, including mask, math, FFT, analog bus, and protocol triggering/decode
- 4th generation MegaZoom technology enabling a faster waveform update rate than other oscilloscopes in this class
- 3-year warranty (upgradable to 5 years)
Test quickly and easily with a simple, intuitive user-interface and built-in help and training signals.
- Intuitive GUI and built-in help available in 15 different languages
- USB save for setups, reference waveforms and mask files
- Connectivity compatibility with BenchVue to visualize multiple measurements simultaneously
- Offline analysis software with Infiniium Offline PC-based oscilloscope analysis software for additional signal viewing, analysis and documentation tasks while away from your oscilloscope
Get professional-level oscilloscope functionality with industry-leading software analysis and 6-in-1 instrument integration.
- Oscilloscope - Professional performance
- Frequency response analysis (Bode Plot) (EDUX1002G and DSOX1102G only)
- WaveGen function generator (EDUX1002G and DSOX1102G only)
- Serial protocol analyzer (with additional software) communication protocols I2C, UART/RS-232, and automotive protocols CAN, LIN
- Digital voltmeter - measurements can be made with the same connection
- Frequency counter - 5-digit accuracy up to oscilloscope bandwidth
Free training signals, teaching lab, and more
- Educators can easily set up teaching labs with the free Educator’s Resource Kit.
- Available training features ideal for students and beginners that are learning how to use oscilloscopes.
- 11 built-in training signals.
- Comprehensive oscilloscope lab guide (for students).
- Tutorial for undergraduate students.
- Oscilloscope fundamentals PowerPoint (for professors and lab assistants).

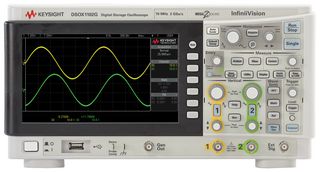

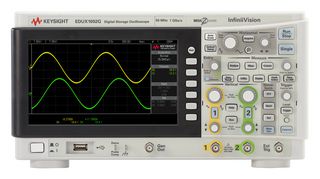

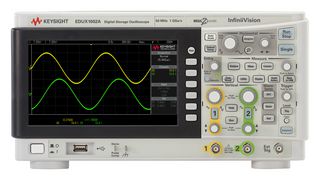

| Models | EDUX1002A | EDUX1002G | DSOX1102A | DSOX1102G |
|---|---|---|---|---|
| Bandwidth | 50 MHz | 50 MHz | 70/100 MHz | 70/100 MHz |
| Display | 7 inch WVGA non-touch | 7 inch WVGA non-touch | 7 inch WVGA non-touch | 7 inch WVGA non-touch |
| Waveform update | 50,000 wfms/sec | 50,000 wfms/sec | 50,000 wfms/sec | 50,000 wfms/sec |
| Vertical sensitivity | 500 uV/div ~ 10 V/div | 500 uV/div ~ 10 V/div | 500 uV/div ~ 10 V/div | 500 uV/div ~ 10 V/div |
| Trigger-view 3rd channel | Standard | Standard | Standard | Standard |
| Education kit | Standard | Standard | Standard | Standard |
| DVM | Free with the customer registration | Free with the customer registration | Free with the customer registration | Free with the customer registration |
| Channels | 2 channel | 2 channel | 2 channel | 2 channel |
| Probes | 1:1, 10:1 switchable 70 MHz N2142A | 1:1, 10:1 switchable 70 MHz N2142A | 1:1, 10:1 switchable 200 MHz N2140A | 1:1, 10:1 switchable 200 MHz N2140A |
| Sampling rate | 1 GSa/s | 1 GSa/s | 2 GSa/s | 2 GSa/s |
| Memory | 100 kpts standard | 100 kpts standard | 1 Mpts standard | 1 Mpts standard |
| Segment memory | - | - | Standard | Standard |
| Mask/limit test | - | - | Standard | Standard |
| WaveGen (20 MHz) | - | Yes, standard | - | Yes, standard |
| Bode plot | - | Yes, standard | - | Yes, standard |
| Serial decodes | I²C, UART (opt. EDUX1EMBD) | I²C, UART (opt. EDUX1EMBD) | I²C, UART (opt. DSOX1EMBD) CAN, LIN (opt. DSOX1AUTO) | I²C, UART (opt. DSOX1EMBD) CAN, LIN (opt. DSOX1AUTO) |
| Warranty | 3 year standard (5 year option) | 3 year standard (5 year option) | 3 year standard (5 year option) | 3 year standard (5 year option) |
| Firmware | InfiniiVision entry firmware | InfiniiVision entry firmware | InfiniiVision entry firmware | InfiniiVision entry firmware |
Michael Grab Keysight’s InfiniiVision 1000 X-Series
Keysight InfiniiVision 1000 X-Series
Recommended Accessories
Contract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.
| Manufacturer Part No | Order Code | Manufacturer / Description | Availability | Price For | Price (Incl GST) | Quantity | Accessory Type | For Use With | Product Range | |
|---|---|---|---|---|---|---|---|---|---|---|
N2133A
|
2706572 |

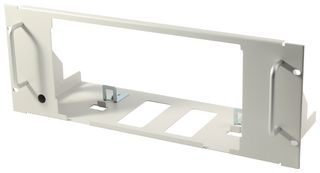

Rack Mount Kit, Rack Mount Kit, Keysight 1000X-Series Oscilloscopes KEYSIGHT TECHNOLOGIES
You previously purchased this product.
View in Order History
|
Available for back order + Check Stock & Lead Times |
Each
|
1+ S$627.00 (S$683.43) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
Rack Mount Kit | Keysight 1000X-Series Oscilloscopes | - |
Recommended Probes
Contract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.
| Manufacturer Part No | Order Code | Manufacturer / Description | Availability | Price For | Price (Incl GST) | Quantity | Oscilloscope Probe Function | Bandwidth | Input Voltage Max | Test Probe Attenuation | For Use With | Product Range | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N2142A.
|
2706570 |
Oscilloscope Probe, Passive, 75 MHz, 300 V, 1:1, 10:1 KEYSIGHT TECHNOLOGIES
You previously purchased this product.
View in Order History
|
Available for back order + Check Stock & Lead Times |
Each
|
1+ S$119.00 (S$129.71) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
Passive | 75MHz | 300V | 1:1, 10:1 | Keysight InfiniiVision EDUX1002A/G & DSOX1102A/G Digital Storage Oscilloscopes | - | |
|
N2140A
|
2706571 |
Oscilloscope Probe, 2 Pack, Passive, 200 MHz, 300 V, 1:1, 10:1 KEYSIGHT TECHNOLOGIES
You previously purchased this product.
View in Order History
|
Available for back order + Check Stock & Lead Times |
Each
|
1+ S$164.00 (S$178.76) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
- | - | - | - | - | - | |
N2784A
|
2706573 |

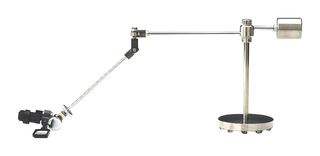

Test Accessory, 1-Arm Probe Positioner, Oscilloscope Probes KEYSIGHT TECHNOLOGIES
You previously purchased this product.
View in Order History
|
Available for back order + Check Stock & Lead Times |
Each
|
1+ S$3,311.00 (S$3,608.99) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
- | - | - | - | Oscilloscope Probes | - | |
N2785A
|
2706574 |

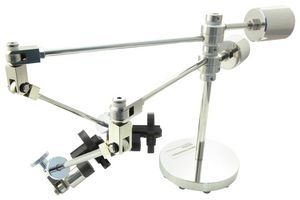

Test Accessory, 2-Arm Probe Positioner, Keysight Probes and Oscilloscope Probes KEYSIGHT TECHNOLOGIES
You previously purchased this product.
View in Order History
|
Available for back order + Check Stock & Lead Times |
Each
|
1+ S$4,762.00 (S$5,190.58) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
- | - | - | - | Keysight Probes and Oscilloscope Probes | - |
