LAPP KABEL - 0028303 - CABLE, LIYY, 3CORE, 0.25MM, 50M

LAPP KABEL0028303

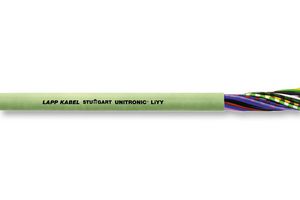

Image is for illustrative purposes only.
Please refer to product description
Manufacturer:
LAPP KABEL
Order Code:
1204317
Manufacturer Part No:
0028303

Technical Data Sheet (49.72KB) EN
Technical Data Sheet (49.72KB) EN

Product Information
  • CABLE, LIYY, 3CORE, 0.25MM, 50M
  • Reel Length (Imperial): 164ft
  • Reel Length (Metric): 50m
  • No. of Conductors: 3
  • Conductor Size AWG: 24AWG
  • Voltage Rating: 500V
  • No. of Max Strands x Strand Size: -
  • Conductor Area CSA: 0.25mm²
  • Jacket Colour: Grey
  • Jacket Material: PVC (Polyvinyl Chloride)
  • External Diameter: 4mm
  • Conductor Material: Copper
  • SVHC: No SVHC (16-Dec-2013)
  • Operating Temperature Max: +80°C
  • Operating Temperature Min: -30°C
Find Similar Products grouped by common attributes

Availability

Availability: UK 66 SG 2

Price For: 1 Reel

Minimum Order Quantity: 1

Order Multiple Quantity: 1

Unit Price: S$41.34

  1. Qty

Price

Qty List Price
1  - 4 S$41.34
5  - 9 S$37.20
10+  S$33.09
