TRACOPOWER  TIW 12-112  AC/DC Enclosed Power Supply, Class II, Fixed, 1 Outputs, 93 V, 264 V, 12 W, 12 V

Technical Data Sheet (260.10KB) EN See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

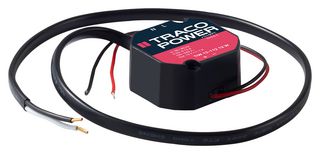

TRACOPOWER TIW 12-112
360°

Product Overview

The TIW 12-112 from Tracopower is a single output, 12W AC to DC power supply. This small size AC to DC power supply is designed particularly for applications in home and office installations. The compact modules cases fit in the standardized in-wall flush boxes or can be mounted on walls. The power supply complies fully with safety and EMC standards.
  • Input voltage range from 93VAC to 264VAC
  • Output voltage is 12VDC
  • Output current is 1A
  • Efficiency is 80%
  • Fully encapsulated plastic housing
  • Dust and waterproof to IP 67
  • Safety approval to IEC/EN 60950-1 EN 50178, EN 60335-1
  • Operating temperature range from -25°C to +50°C
  • Short circuit and overload protection

Product Information

Power Supply Output Type:
Fixed
No. of Outputs:
1Outputs
Input Voltage AC Min:
93V
Input Voltage AC Max:
264V
Output Power Max:
12W
Output Voltage - Output 1:
12V
Output Voltage - Output 2:
-
Output Current - Output 1:
1A
Output Current - Output 2:
-
Output Voltage - Output 3:
-
Output Voltage - Output 4:
-
Output Current - Output 3:
-
Output Current - Output 4:
-
Product Range:
TIW Series
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial;
  • Power Management;
  • Security;
  • Building Automation

Legislation and Environmental

Country of Origin:
China

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85044090
Weight (kg):
.08
