2-5174341-5

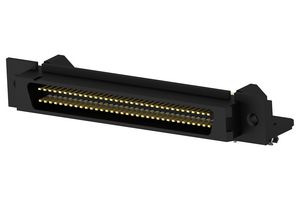

D Sub Connector, Standard, Plug, AMPLIMITE 0.50, 68 Contacts, Solder
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No2-5174341-5
Order Code3398009
Product RangeAMPLIMITE 0.50
Your Part Number
485 In Stock
Need more?
485 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$53.000 (S$57.770) |
| 5+ | S$50.170 (S$54.6853) |
| 10+ | S$47.330 (S$51.5897) |
| 25+ | S$44.490 (S$48.4941) |
| 50+ | S$41.900 (S$45.671) |
| 100+ | S$38.310 (S$41.7579) |
Price for:Each
Minimum: 1
Multiple: 1
S$53.00 (S$57.77 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No2-5174341-5
Order Code3398009
Product RangeAMPLIMITE 0.50
D Sub Connector TypeStandard
Product RangeAMPLIMITE 0.50
No. of Contacts68Contacts
D Sub Shell Size-
Contact Termination TypeSolder
Connector MountingThrough Hole Mount Right Angle
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Connector Body MaterialZinc Body
SVHCNo SVHC (04-Feb-2026)
Product Overview
- AMPLIMITE 0.50 series PCB D-Sub connector
- Full metal shell, shielded, thermoplastic post plate
- Number of positions are 68, number of rows are 4
- PCB mount orientation is right angle
- Nickel over copper shield plating, zinc sheet/shield, brass retention leg plating
- Contact mating area plating thickness (µin) is 30
- Termination post length is 2.89mm
- 1.27mm pitch, black PBT housing
- Row-to-row spacing is 2.54mm
- UL flammability rating is UL 94V-0
Technical Specifications
D Sub Connector Type
Standard
Product Range
AMPLIMITE 0.50
D Sub Shell Size
-
Connector Mounting
Through Hole Mount Right Angle
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (04-Feb-2026)
Gender
Plug
No. of Contacts
68Contacts
Contact Termination Type
Solder
Contact Material
Phosphor Bronze
Connector Body Material
Zinc Body
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.019312
