LF-SNSR-ETH-EVN
Sensor to Ethernet Bridge Kit, LFCPNX-100-9LFG672C/LIFCL-17-9BG256C, CertusPro-NX/CrossLink-NX, FPGA
| Manufacturer | LATTICE SEMICONDUCTOR |
|---|---|
| Manufacturer Part No | LF-SNSR-ETH-EVNCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4640362 |
| Your Part Number |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$506.610 (S$552.2049) |
Product Information
| Manufacturer | LATTICE SEMICONDUCTOR |
|---|---|
| Manufacturer Part No | LF-SNSR-ETH-EVNCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4640362 |
| Silicon Manufacturer | Lattice Semiconductor |
| Core Architecture | FPGA |
| Core Sub-Architecture | - |
| Silicon Core Number | LFCPNX-100-9LFG672C, LIFCL-17-9BG256C |
| Silicon Family Name | CertusPro-NX, CrossLink-NX |
| For Use With | Lattice Semiconductor Development Boards |
| Kit Contents | Sensor to Enet Bridge Brd Certus-Pro-NX-100 FPGA, CrossLink-NX-17 FPGA, USB TypeC to USB TypeC Cable |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

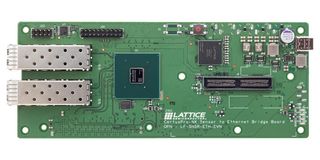

LF-SNSR-ETH-EVN is a CertusPro-NX Sensor to Ethernet bridge board. Lattice Semiconductor, in collaboration with NVIDIA developed an Edge AI solution that enables developers to design connectivity bridging applications from sensor to compute. The design simplifies and accelerates deployment of intelligent edge systems that require diverse sensor input interfaces and protocols. The sensor bridge reference design is implemented on the CertusPro-NX Sensor to Ethernet Bridge Board that supports low latency, flexible sensor configuration and interfacing, and an Ethernet Packetizer. The design couples seamlessly with Nvidia Holoscan Sensor Bridge, offering easily programmable system control, ready to use configurable FPGA IP, and a full stack solution for data acquisition and processing leveraging NVIDIA Holoscan on NVIDIA IGX Orin and Orin AGX. Also includes API with DMA streaming, control interfaces, GPUDirect RDMA, Linux sockets, and sensor support.
- Full stack solution ensures data provided at FPGA sensor interface port arrives in DRAM
- Support Sensor Interfaces such as AXI stream port and APB control bus
- Support up to 2x 10G Ethernet channels
- Ready to use open-source software
- Low-latency, high throughput and scalable sensor streaming enabled by NVIDIA Holoscan
Contents
CertusPro-NX sensor to Ethernet bridge board, USB type-C to USB type-C cable.
Technical Specifications
| Silicon Manufacturer | Lattice Semiconductor |
|---|---|
| Core Sub-Architecture | - |
| Silicon Family Name | CertusPro-NX, CrossLink-NX |
| Kit Contents | Sensor to Enet Bridge Brd Certus-Pro-NX-100 FPGA, CrossLink-NX-17 FPGA, USB TypeC to USB TypeC Cable |
| SVHC | No SVHC (25-Jun-2025) |
| Core Architecture | FPGA |
|---|---|
| Silicon Core Number | LFCPNX-100-9LFG672C, LIFCL-17-9BG256C |
| For Use With | Lattice Semiconductor Development Boards |
| Product Range | - |
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84718000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
