Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | AC243006-1Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2218506 |
| Your Part Number |
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$72.110 (S$78.5999) |
Price for:Each
Minimum: 1
Multiple: 1
S$72.11 (S$78.60 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | AC243006-1Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2218506 |
| Silicon Manufacturer | Microchip |
| Core Architecture | PIC |
| Core Sub-Architecture | PIC24, dsPIC33, PIC32 |
| Silicon Core Number | SST38VF6401, SST39VF1601C |
| Silicon Family Name | PICtail |
| For Use With | Explorer 16 Development Boards |
| Kit Contents | 2 x Parallel Flash PICtail Plus Daughter Boards with SST38VF6401 & SST39VF1601C |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

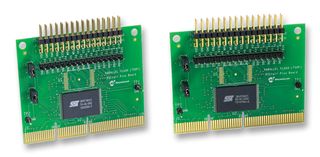

AC243006-1 is a parallel SuperFlash kit. This kit has two parallel flash PICtail Plus daughter boards. Each board has a parallel flash device soldered on it. The parallel flash devices included are SST38VF6401 and SST39VF1601C. The parallel flash PICtail Plus daughter board is an evaluation board designed to interface with the PICtail Plus connector found on the Explorer 16 development board.
- 16 pin header provides easy access to parallel flash data pins for probing and evaluation
- 32 pin right angled header provides easy access to parallel flash address and control pins
- 2 pin header provides flexibility to use either on board power or external power supply
- Plugs into PICtail Plus connector of Explorer 16 development board
- Follows the published recommended usage including decoupling capacitors
Applications
Consumer Electronics, Industrial, Automotive
Contents
Two parallel flash PICtailTM Plus daughter boards.
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Core Sub-Architecture | PIC24, dsPIC33, PIC32 |
| Silicon Family Name | PICtail |
| Kit Contents | 2 x Parallel Flash PICtail Plus Daughter Boards with SST38VF6401 & SST39VF1601C |
| SVHC | No SVHC (04-Feb-2026) |
| Core Architecture | PIC |
|---|---|
| Silicon Core Number | SST38VF6401, SST39VF1601C |
| For Use With | Explorer 16 Development Boards |
| Product Range | - |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85437090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .1 |
