AC320005-4
Display Module, WQVGA, 480 x 272 Resolution, TFT, maXTouch, For MEB II, Xplained Pro/Ultra

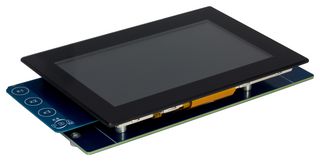

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$446.920 (S$487.1428) |
Price for:Each
Minimum: 1
Multiple: 1
S$446.92 (S$487.14 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoAC320005-4
Order Code2835943
Silicon ManufacturerMicrochip
Core Architecture-
Core Sub-Architecture-
Silicon Core NumberMXT336
Silicon Family Name-
For Use WithDM320005-2 Multimedia Expansion Board II, Xplained Pro & Xplained Ultra Board
Kit ContentsWQVGA Display Module With maXTouch AC320005-4
Product Range-
SVHCNo SVHC (04-Feb-2026)
Product Overview
AC320005-4 is a high-performance 4.3" WQVGA display module with maXTouch® technology which is designed for evaluating the Microchip graphics display solution and graphics library for 32-bit microcontrollers. This board is compatible with the Multimedia Expansion Board II (DM320005-2), as well as with Xplained Pro and Xplained Ultra evaluation kits. This board has a TFT 480 x 272 display with 24-bit parallel RGB interface with a maXTouch technology capacitive touch interface.
- 480 x 272 TFT display
- maXTouch MXT336 and QTouch
- QT1070 (with four navigation keys)
- 4K-bit 1-wire EEPROM
- Integrated Projective Capacitive Touch (PCAP) panel
Technical Specifications
Silicon Manufacturer
Microchip
Core Sub-Architecture
-
Silicon Family Name
-
Kit Contents
WQVGA Display Module With maXTouch AC320005-4
SVHC
No SVHC (04-Feb-2026)
Core Architecture
-
Silicon Core Number
MXT336
For Use With
DM320005-2 Multimedia Expansion Board II, Xplained Pro & Xplained Ultra Board
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.044
