ADM00770

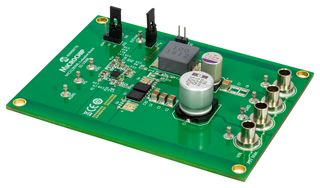

Evaluation Board, Synchronous Buck Controller, Adaptive On-Time Control, External Soft Start, 75V

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | ADM00770Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2749242 |
| Your Part Number |
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$72.880 (S$79.4392) |
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | ADM00770Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2749242 |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | MIC2128 |
| Kit Application Type | Power Management |
| Application Sub Type | Synchronous Buck Controller |
| Kit Contents | Eval Board MIC2128 |
| Product Range | - |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
ADM00770 is a MIC2128 evaluation board for a constant-frequency synchronous buck controller with adaptive on-time control architecture. The MIC2128 operates over an input supply range of 4.5V to 75V. The output voltage is adjustable down to 0.6V with a guaranteed accuracy of ±1%. The device operates with programmable switching frequency from 270kHz to 800kHz.
- Input: 7V to 75V (optimized for 48V)
- Output: 5V at 5A
- Features soft-start (SS) time selection pin which allows the user to adjust output soft-start time
- Features an auxiliary bootstrap low-dropout (LDO)
- Can start up monotonically into a pre-biased output
- Features an open drain power good signal (PG) which signals when the output is in regulation
- Operates in discontinuous conduction mode during soft start at light loads
- 300kHz switching frequency (adjustable 270kHz to 800kHz)
Contents
MIC2128 evaluation board, Information sheet.
Warnings
The MIC2128 evaluation board does not have reverse polarity protection. Applying a negative voltage to the VVIN and GND terminals may damage the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Notes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Eval Board MIC2128 |
| Automotive Qualification Standard | - |
| Silicon Core Number | MIC2128 |
|---|---|
| Application Sub Type | Synchronous Buck Controller |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
