180-M26-203L001
D Sub Connector, HD26, High Density, Receptacle, 180 M Series, 26 Contacts, DA, Solder Cup

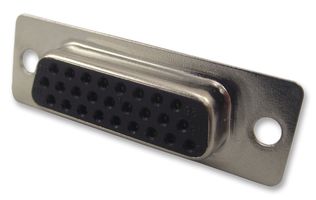

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNORCOMP
Manufacturer Part No180-M26-203L001
Order Code2124480
Product Range180 M Series
Your Part Number
82 In Stock
Need more?
82 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$17.480 (S$19.0532) |
| 10+ | S$15.380 (S$16.7642) |
| 25+ | S$14.410 (S$15.7069) |
| 100+ | S$12.630 (S$13.7667) |
| 250+ | S$11.910 (S$12.9819) |
| 500+ | S$11.680 (S$12.7312) |
Price for:Each
Minimum: 1
Multiple: 1
S$17.48 (S$19.05 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerNORCOMP
Manufacturer Part No180-M26-203L001
Order Code2124480
Product Range180 M Series
D Sub Connector TypeHigh Density
Product Range180 M Series
No. of Contacts26Contacts
D Sub Shell SizeDA
Contact Termination TypeSolder Cup
Connector MountingCable Mount, Panel Mount
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCLead (27-Jun-2024)
Product Overview
The 180-M26-203L001 is a 26-pin solder-cup Machined High-density Connector Socket with high reliability stamped contacts. It has gold flash-plated brass contact with glass-filled PBT thermoplastic insulator and nickel plated, steel shell.
- Approximately 65% more higher density then standard D-sub connectors
- Metal shell provides EMI/RFI shielding
- Connectors will fit in standard D-sub backshells
- Contacts will accept 28 to 24AWG gauge wire
- UL94V-0 Flammability
Applications
Communications & Networking, Computers & Computer Peripherals, Industrial
Technical Specifications
D Sub Connector Type
High Density
Product Range
180 M Series
D Sub Shell Size
DA
Connector Mounting
Cable Mount, Panel Mount
Contact Plating
Gold Plated Contacts
SVHC
Lead (27-Jun-2024)
Gender
Receptacle
No. of Contacts
26Contacts
Contact Termination Type
Solder Cup
Contact Material
Brass
Connector Body Material
Steel Body
Technical Docs (4)
Alternatives for 180-M26-203L001
1 Product Found
Associated Products
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0085
