680S3W3103L401
Combination Layout D Sub Connector, 40A, IP68, Seal-D 680S Series, DA-3W3, Plug, 3 Contacts

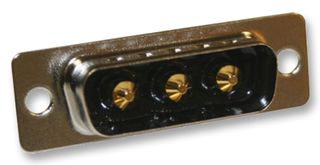

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNORCOMP
Manufacturer Part No680S3W3103L401
Order Code2294343
Product RangeSeal-D 680S Series
Your Part Number
80 In Stock
Need more?
80 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$17.760 (S$19.3584) |
| 10+ | S$16.480 (S$17.9632) |
| 25+ | S$15.450 (S$16.8405) |
| 100+ | S$14.330 (S$15.6197) |
| 250+ | S$12.890 (S$14.0501) |
| 500+ | S$12.640 (S$13.7776) |
Price for:Each
Minimum: 1
Multiple: 1
S$17.76 (S$19.36 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerNORCOMP
Manufacturer Part No680S3W3103L401
Order Code2294343
Product RangeSeal-D 680S Series
Product RangeSeal-D 680S Series
Insert ArrangementDA-3W3
No. of Contacts3Contacts
Contact Type3 Power
Contact Termination TypeSolder Cup
Connector MountingCable Mount
Connector Body MaterialSteel Body
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCLead (27-Jun-2024)
Product Overview
The 680S3W3103L401 is a 3-way Male IP67 Power-D Solder Cup Version Connector, 680S series, with nickel-plated steel shell, gold-plated copper alloy contacts and PBT insulation. Unique sealing method maintains standard D-sub profile allowing for drop in replacement of current Power-D connectors.
- Meets IEC-529-IP67 requirements
- Allows signal, high current and high voltage in one connector
- Contacts are pre-loaded into insulator
- 40A Current rating
- 1mΩ Contact resistance
- 5GΩ Insulation resistance
- -55 to +155°C Temperature range
Applications
Industrial
Technical Specifications
Product Range
Seal-D 680S Series
Gender
Plug
Contact Type
3 Power
Connector Mounting
Cable Mount
Contact Material
Copper Alloy
SVHC
Lead (27-Jun-2024)
Insert Arrangement
DA-3W3
No. of Contacts
3Contacts
Contact Termination Type
Solder Cup
Connector Body Material
Steel Body
Contact Plating
Gold Plated Contacts
Technical Docs (4)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0089
