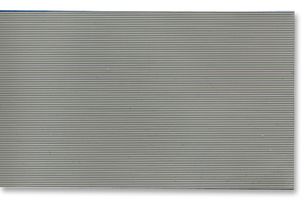

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3756/10Copy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | 2302005 |
| Product Range | 3756 Series |
| Also Known As | 7000057330 |
| Your Part Number | |
| Technical Datasheet |
36 In Stock
100 more incoming. You can reserve stock now
36 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$134.360 (S$146.4524) |
| 2+ | S$133.070 (S$145.0463) |
Price for:1 Reel: (100ft/30.5m)
Minimum: 1
Multiple: 1
S$134.36 (S$146.45 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3756/10Copy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | 2302005 |
| Product Range | 3756 Series |
| Also Known As | 7000057330 |
| Technical Datasheet | |
| Cable Shielding | Unscreened |
| No. of Cores | 10Core |
| Wire Gauge | 30AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 100ft |
| Reel Length (Metric) | 30.5m |
| Jacket Colour | Grey |
| Cable Width | 6.35mm |
| No. of Max Strands x Strand Size | 7 x 38AWG |
| Pitch Spacing | 0.635mm |
| Voltage Rating | 50V |
| Conductor Material | Tinned Copper |
| Jacket Material | TPE |
| Ribbon Cable Type | Flat Ribbon Cable |
| Product Range | 3756 Series |
| SVHC | Boric acid (14-Jun-2023) |
Product Overview
The 3756/10 is a 10-way round conductor Flat Cable with 0.025" wire spacing increases signal density. It has Thermoplastic Elastomer (TPE) insulation.
- CPR: Not Yet Qualified
- Meets the SCSI-3 Characteristic Impedance Requirements
- 82Ω Unbalanced Characteristic Impedance
- 138Ω Balanced Characteristic Impedance
- -40 to +105°C Temperature Rating
Applications
Industrial
Notes
This is Non-Splice Free Cable. The entire cable length of one packaging unit is achieved by several cable sections without a continuous electrical & mechanical connection.
Technical Specifications
| Cable Shielding | Unscreened |
|---|---|
| Wire Gauge | 30AWG |
| Reel Length (Imperial) | 100ft |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 38AWG |
| Voltage Rating | 50V |
| Jacket Material | TPE |
| Product Range | 3756 Series |
| No. of Cores | 10Core |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | 30.5m |
| Cable Width | 6.35mm |
| Pitch Spacing | 0.635mm |
| Conductor Material | Tinned Copper |
| Ribbon Cable Type | Flat Ribbon Cable |
| SVHC | Boric acid (14-Jun-2023) |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Boric acid (14-Jun-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 4.0823 |
