910-5M NC032

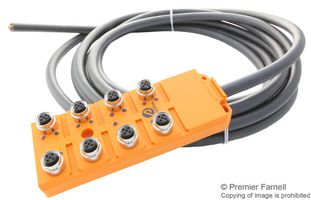

Sensor Distribution Box, 5m Cable, M12 Connector - 5 Pole, 8 Ports, 910 Series, IP67
Image is for illustrative purposes only. Please refer to product description.
ManufacturerALPHA WIRE
Manufacturer Part No910-5M NC032
Order Code2676754
Product Range910 Series
Technical Datasheet
4 In Stock
Need more?
4 Delivery in 3-4 Business Days(UK stock)
Available until stock is exhausted
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$231.620 (S$252.4658) |
| 5+ | S$214.620 (S$233.9358) |
Price for:Each
Minimum: 1
Multiple: 1
S$231.62 (S$252.47 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerALPHA WIRE
Manufacturer Part No910-5M NC032
Order Code2676754
Product Range910 Series
Technical Datasheet
Input Connection Type5m Cable
Output TypeM12 Connector - 5 Pole
No. of Output Ports8Ports
Product Range910 Series
IP RatingIP67
Product Overview
The 910-5M NC032 from Alpha Wire is a 910 series M12 passive distribution box with 5m cable. This 8 ports (M12 receptacles) distribution box has capability to simplify industrial connectivity system by saving space and time. It is suitable for a wide range of applications from traditional factory automation floor to harsh food and beverage environments. This compact distribution box consolidates and simplifies wiring from sensors/actuators to the controller. It also eliminates the need for additional enclosures.
- Black zero-halogen polyurethane control cable
- Thermoplastic housings for industrial use
- Two signal per port
- Gold plated copper alloy contacts, nickel plated copper alloy receptacle shell
- LED activity indicator
- 10V to 30VDC voltage rating, 4A per port/12A maximum current rating
- IP67/NEMA 6P sealing
- Contact resistance is ≤ 5mohm, insulation resistance is <gt/> 10^9ohm
- Approved by UL (file number : E485156)
- Operating temperature range from -15°C to +80°C (C-track and UL maximum 60°C)
Technical Specifications
Input Connection Type
5m Cable
No. of Output Ports
8Ports
IP Rating
IP67
Output Type
M12 Connector - 5 Pole
Product Range
910 Series
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):1.2202
