1658640-1

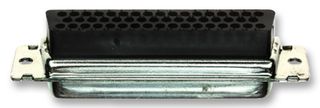

D Sub Connector Housing, 50 Ways, D Sub, DC, AMPLIMITE HDP-20, Receptacle, Steel Body
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1658640-1Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2293887 |
| Product Range | AMPLIMITE HDP-20 |
| Your Part Number | |
| Technical Datasheet |
102 In Stock
Need more?
102 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$12.590 (S$13.7231) |
| 10+ | S$10.700 (S$11.663) |
| 25+ | S$10.030 (S$10.9327) |
| 100+ | S$9.550 (S$10.4095) |
| 250+ | S$9.310 (S$10.1479) |
| 500+ | S$9.160 (S$9.9844) |
Price for:Each
Minimum: 1
Multiple: 1
S$12.59 (S$13.72 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 1658640-1Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2293887 |
| Product Range | AMPLIMITE HDP-20 |
| Technical Datasheet | |
| No. of Positions | 50Ways |
| Connector Type | D Sub |
| Connector Shell Size | DC |
| Product Range | AMPLIMITE HDP-20 |
| Gender | Receptacle(View Associated Connectors) |
| Connector Body Material | Steel Body |
| For Use With | AMPLIMITE HDP-20 Series Crimp Snap-In Contacts |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 1658640-1 is a 50-position snap-in crimp D-sub Connector with steel body. The shell is made of tin-plated steel and has 5 shell size. The Amplimite HDP-20 series connector has machine applied terminations assure highest production rates. Intermateable with any size 20 Subminiature D connector dimensionally complying with MIL-C-24308. Crimp snap-in contacts allows loading of only the number of contacts being used.
- 20 Contact size
- High performance, precision formed crimp contacts
Applications
Commercial, Aerospace, Defence, Military
Technical Specifications
| No. of Positions | 50Ways |
|---|---|
| Connector Shell Size | DC |
| Gender | Receptacle |
| For Use With | AMPLIMITE HDP-20 Series Crimp Snap-In Contacts |
| Connector Type | D Sub |
|---|---|
| Product Range | AMPLIMITE HDP-20 |
| Connector Body Material | Steel Body |
| SVHC | No SVHC (04-Feb-2026) |
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .014 |
