320559

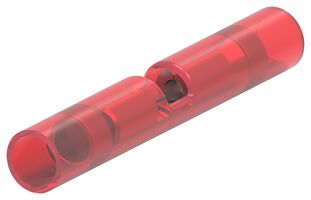

Butt Splice, Red, PIDG, 22 AWG, 16 AWG, 1.65 mm², Nylon (Polyamide)
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No320559
Order Code586924
Product RangePIDG
Technical Datasheet
32,735 In Stock
4,300 more incoming. You can reserve stock now
6029 Next business day delivery available(SG stock)
26706 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$1.650 (S$1.7985) |
| 10+ | S$1.390 (S$1.5151) |
| 25+ | S$1.300 (S$1.417) |
| 50+ | S$1.210 (S$1.3189) |
| 100+ | S$1.160 (S$1.2644) |
| 250+ | S$1.040 (S$1.1336) |
| 500+ | S$0.976 (S$1.0638) |
| 1000+ | S$0.923 (S$1.0061) |
| 2500+ | S$0.881 (S$0.9603) |
Price for:Each
Minimum: 1
Multiple: 1
S$1.65 (S$1.80 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No320559
Order Code586924
Product RangePIDG
Technical Datasheet
Insulator ColourRed
Product RangePIDG
Wire Size AWG Min22AWG
Wire Size AWG Max16AWG
Conductor Area CSA1.65mm²
Insulator MaterialNylon (Polyamide)
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 320559 is a red serrated insulated Butt Splice with of tin-plated copper contact. The splice has nylon insulation and accepts 22 to 16AWG wire size.
- 600V Maximum operating voltage
- 105°C Maximum operating temperature
Technical Specifications
Insulator Colour
Red
Wire Size AWG Min
22AWG
Conductor Area CSA
1.65mm²
SVHC
No SVHC (21-Jan-2025)
Product Range
PIDG
Wire Size AWG Max
16AWG
Insulator Material
Nylon (Polyamide)
Alternatives for 320559
5 Products Found
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002
