350826-1
Rectangular Power Connector, 4 Contacts, Universal MATE-N-LOK, Through Hole Straight, 6.35 mm

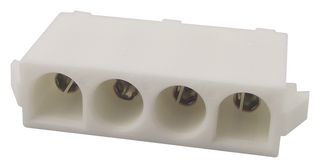

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No350826-1
Order Code2575734
Product RangeUniversal MATE-N-LOK
Your Part Number
330 In Stock
700 more incoming. You can reserve stock now
330 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$1.940 (S$2.1146) |
| 10+ | S$1.650 (S$1.7985) |
| 100+ | S$1.410 (S$1.5369) |
| 500+ | S$1.250 (S$1.3625) |
| 1000+ | S$1.190 (S$1.2971) |
| 2500+ | S$1.170 (S$1.2753) |
Price for:Each
Minimum: 1
Multiple: 1
S$1.94 (S$2.11 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No350826-1
Order Code2575734
Product RangeUniversal MATE-N-LOK
Technical Datasheet
No. of Contacts4Contacts
Product RangeUniversal MATE-N-LOK
Connector SystemsWire-to-Board
Contact Termination TypeThrough Hole Straight
Pitch Spacing6.35mm
Contact MaterialPhosphor Bronze
Connector ShroudShrouded
Contact PlatingTin Plated Contacts
No. of Rows1Rows
SVHCNo SVHC (04-Feb-2026)
Product Overview
350826-1 is an universal MATE-N-LOK, single row, 4 position, 6.35mm [.25in] pitch vertical header.
- 600VAC operating voltage
- White nylon housing
- Through hole-solder termination method to PCB
- With mating alignment and positive lock mating retention
- Polarization mating alignment type
- UL 94V-0 UL flammability rating
- Operating temperature range from -40 to 105°C [ -40 to 221°F ]
Technical Specifications
No. of Contacts
4Contacts
Connector Systems
Wire-to-Board
Pitch Spacing
6.35mm
Connector Shroud
Shrouded
No. of Rows
1Rows
Product Range
Universal MATE-N-LOK
Contact Termination Type
Through Hole Straight
Contact Material
Phosphor Bronze
Contact Plating
Tin Plated Contacts
SVHC
No SVHC (04-Feb-2026)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.003677
