5787169-9
D Sub Connector, Double Density, Receptacle, AMPLIMITE 0.050, 100 Contacts, DD, Solder

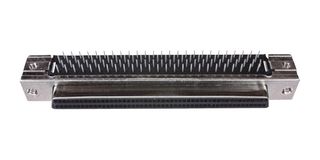

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No5787169-9
Order Code1556985
Product RangeAMPLIMITE 0.050
Your Part Number
Technical Datasheet
213 In Stock
Need more?
213 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$41.750 (S$45.5075) |
| 10+ | S$38.400 (S$41.856) |
| 25+ | S$35.040 (S$38.1936) |
| 100+ | S$31.520 (S$34.3568) |
| 250+ | S$30.130 (S$32.8417) |
| 500+ | S$28.620 (S$31.1958) |
Price for:Each
Minimum: 1
Multiple: 1
S$41.75 (S$45.51 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No5787169-9
Order Code1556985
Product RangeAMPLIMITE 0.050
Technical Datasheet
D Sub Connector TypeDouble Density
Product RangeAMPLIMITE 0.050
No. of Contacts100Contacts
D Sub Shell SizeDD
Contact Termination TypeSolder
Connector MountingThrough Hole Mount Right Angle
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 5787169-9 is a 100-position 4-row shielded right angle PCB D-sub Connector with gold flash over palladium nickel-plated phosphor bronze contacts and black thermoplastic housing. The .050 series receptacle supports through-hole solder termination method to wire/cable. It is applicable to printed circuit board.
- Full metal shell
Applications
Industrial
Technical Specifications
D Sub Connector Type
Double Density
Product Range
AMPLIMITE 0.050
D Sub Shell Size
DD
Connector Mounting
Through Hole Mount Right Angle
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Gender
Receptacle
No. of Contacts
100Contacts
Contact Termination Type
Solder
Contact Material
Phosphor Bronze
Connector Body Material
Steel Body
Technical Docs (4)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.018144
