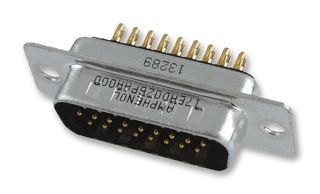

17EHD026PAA000
D Sub Connector, HD26, High Density, Plug, 17EHD, 26 Contacts, DA, Solder Cup
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$4.370 (S$4.7633) |
| 10+ | S$4.050 (S$4.4145) |
| 25+ | S$3.840 (S$4.1856) |
| 50+ | S$3.420 (S$3.7278) |
| 100+ | S$3.310 (S$3.6079) |
| 250+ | S$3.170 (S$3.4553) |
| 500+ | S$2.890 (S$3.1501) |
| 1000+ | S$2.810 (S$3.0629) |
| 2400+ | S$2.690 (S$2.9321) |
Product Information
Product Overview
The 17EHD026PAA000 is a 26-position D-sub Connector, 17EHD series, gold flash over nickel-plated copper alloy contacts, 0.120-inch (3.05mm) clear hole panel mounting and solder cup termination, pin (male)-type contact. The high density D-subminiature connector complement Amphenol’s extensive D-subminiature connector line. This line of connector offers many superior features and high performance level. A cable mount version with solder terminations is also available, which can be combined with Amphenol’s standard line of shielded or unshielded backshells.
- Tin-plated steel shell
- UL94V-0 black glass-filled thermoplastic dielectric
- 3A Maximum current rating per contact
- 125VAC Voltage rating
- 1000VAC Minimum dielectric withstanding voltage
- 5000MΩ Minimum insulation resistance
- 15mΩ Maximum contact resistance
Applications
Communications & Networking, Industrial
Technical Specifications
High Density
17EHD
DA
Cable Mount
Gold Plated Contacts
No SVHC (17-Jan-2023)
Plug
26Contacts
Solder Cup
Copper Alloy
Steel Body
Alternatives for 17EHD026PAA000
1 Product Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
