PT06A8-4S(SR)

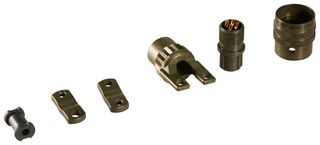

Circular Connector, PT, Straight Plug, 4 Contacts, Solder Socket, Bayonet, 8-4

AMPHENOL INDUSTRIAL PT06A8-4S(SR)
AMPHENOL INDUSTRIAL PT06A8-4S(SR)
AMPHENOL INDUSTRIAL PT06A8-4S(SR)
360°
×
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
PT06A8-4S(SR)
Order Code:
1339816
Product Range
PT
Also Known As:
71-150751-04S
Technical Datasheet:
PT06A8-4S(SR)   Datasheet
See all Technical Docs

Product Range Selector (PT)

See all from this product range

Product Overview

The PT06A8-4S(SR) is a 4-contact Circular Connector with gold-plated contacts, straight plug, 8-4 insert arrangement, socket contact. The standard olive drab, electrically conductive cadmium plate bayonet lock connector with solder contacts. The solder contact miniature cylindrical connector meets the most critical application needs. Design versatility combined with high reliability performance makes these series of miniature cylindrical connector ideal for environmental sealing or pressurized applications. Shell components for these series are aluminum. The dependable 5-key/keyway polarization with bayonet lock coupling assures positive mating with no chance of cross plugging. Spring tension provided by a wave washer in the coupling nut ensures maintenance of interfacial seal between mating halves.
  • General duty back shell
  • Corrosion-resistant
  • Both insert and main joint gasket are molded from resilient neoprene
  • Provides excellent moisture sealing at gasket
  • Superior electrical insulation of contacts in insert
  • Gold plating eliminates contact corrosion and offers an indefinite shelf life
  • With strain relief clamp
  • -55 to +125°C Operating temperature

Applications

Aerospace, Defence, Military, Building Automation, Communications & Networking, Industrial, Robotics, Sensing & Instrumentation, Mining, Oil & Gas, System Monitoring, Logistics

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
PT

:
Straight Plug

:
4Contacts

:
Solder Socket

:
Bayonet

:
8-4

:
Aluminium Alloy Body

:
Olive Drab Chromate over Cadmium

:
Copper Alloy

:
Gold

:
N

:
General Duty

:
MIL-DTL-26482 Series I
