82-4426-11RFX
RF / Coaxial Connector, N Coaxial, Straight Plug, Crimp, 50 ohm, RG213/U, RG225/U, RG8/U, RG9/U
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$14.830 (S$16.1647) |
| 10+ | S$13.450 (S$14.6605) |
| 25+ | S$10.920 (S$11.9028) |
| 100+ | S$10.270 (S$11.1943) |
| 250+ | S$9.840 (S$10.7256) |
Product Information
Product Overview

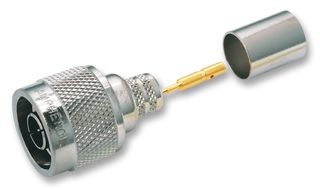

The 82-4426-11RFX is a N-type straight Crimp Plug with gold-plated brass contacts, nickel-plated brass body and a PTFE insulator. N-type connector is designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11GHz. N-type connector feature threaded coupling mechanisms and is fully interchangeable with N-type connector made to the MIL-C-39012 specification. This connector is used in all systems where excellent RF and mechanical performance is critical. This RF connector is designed for RG-213, RG-214, RG-225, RG-302, RG-393, RG-8, RG-87, RG-8A, RG-9, RG-9A and RG-9B cable.
- Threaded coupling mechanism
- Standard polarity
- Standard thread direction
- 1500V Peak voltage rating
- 5000MΩ Minimum insulation resistance
- 500 Mating cycles
Applications
RF Communications, Communications & Networking, Sensing & Instrumentation, Wireless
Technical Specifications
N Coaxial
Crimp
RG213/U, RG225/U, RG8/U, RG9/U
Gold Plated Contacts
Cable Mount
Straight Plug
50ohm
Brass
11GHz
-
Technical Docs (2)
Alternatives for 82-4426-11RFX
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
