T816110A1S102CEU
Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Through Hole, T816

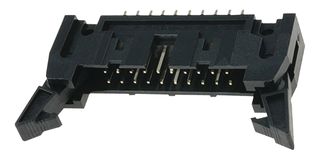

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
Manufacturer Part NoT816110A1S102CEU
Order Code2217528
Technical Datasheet
842 In Stock
2,181 more incoming. You can reserve stock now
842 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 10+ | S$0.975 (S$1.0628) |
| 100+ | S$0.876 (S$0.9548) |
| 500+ | S$0.716 (S$0.7804) |
| 1000+ | S$0.638 (S$0.6954) |
| 2500+ | S$0.577 (S$0.6289) |
| 5000+ | S$0.557 (S$0.6071) |
| 10000+ | S$0.530 (S$0.5777) |
| 25000+ | S$0.518 (S$0.5646) |
Price for:Each
Minimum: 10
Multiple: 10
S$9.75 (S$10.63 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
Manufacturer Part NoT816110A1S102CEU
Order Code2217528
Technical Datasheet
Connector SystemsWire-to-Board
Connector ShroudShrouded
Connector TypePCB Header
SVHCNo SVHC (17-Dec-2014)
Product Overview
The T816110A1S102CEU is a 10-way 2-row 2.54mm straight through-hole Header with long latch. This T816 series wire-to-board connector has gold flash over 50μinch nickel plated brass contacts, black housing and a glass-reinforced PBT insulator.
- 20mΩ at 1ADC Maximum contact resistance
- 1000MΩ at 500VDC Minimum insulation resistance
- 500VAC at 60Hz for one minute Dielectric withstanding voltage
- 3A Current rating per contact
- 250VAC at 60Hz Voltage rating
Applications
Industrial
Technical Specifications
Connector Systems
Wire-to-Board
Connector Type
PCB Header
Connector Shroud
Shrouded
SVHC
No SVHC (17-Dec-2014)
Technical Docs (1)
Alternatives for T816110A1S102CEU
4 Products Found
Associated Products
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2014)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0044
