EVAL-LTC9101-2
Evaluation Kit, LTC9101-2, Power Over Ethernet (POE), PSE Controller, Power Management
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-LTC9101-2Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4313272 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$2,306.880 (S$2,514.4992) |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-LTC9101-2Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4313272 |
| Technical Datasheet | |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | LTC9101-2 |
| Kit Application Type | Power Management - Power Over Ethernet |
| Application Sub Type | Power Over Ethernet (POE), PSE Controller |
| Kit Contents | Evaluation Board LTC9101-2, Daughter Card DC3159A-C, Motherboard DC3017A-B |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

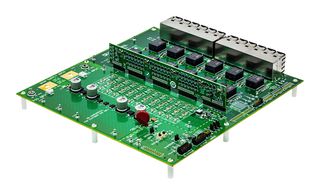

EVAL-LTC9101-2 is a 48-channel power sourcing equipment (PSE) that complies with IEEE 802.3bt. This is a 24-port IEEE 802.3bt LTC9101-2/LTC9102 evaluation kit. This kit includes the DC3159A-C daughter card, DC3017A-B motherboard, and features the LTC9101-2 and LTC9102 chipset. In the EVAL-LTC9101-2 KIT, the daughter card has a single LTC9101-2 digital controller chipset. The digital controller interfaces with four LTC9102 (12-channel) analogue controllers for a total of 48 PSE channels.
- Connects to up to twenty-four, 802.3af/at/bt PDs directly at each port for 4-pair power evaluation
- Kit version can operate autonomously or with host control over I2C
Contents
DC3159A-C daughter card, DC3017A-B motherboard.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Silicon Manufacturer | Analog Devices |
|---|---|
| Kit Application Type | Power Management - Power Over Ethernet |
| Kit Contents | Evaluation Board LTC9101-2, Daughter Card DC3159A-C, Motherboard DC3017A-B |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | LTC9101-2 |
|---|---|
| Application Sub Type | Power Over Ethernet (POE), PSE Controller |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
