1001-0143-44

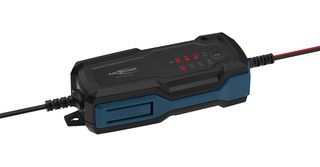

With numerous features, the Ansmann 1001-0143 8-stage BC 6-12V charger ensures safe and reliable charging for lead batteries with a capacity of 4-60Ah. Easily switch between charging programs with the 'Mode' button. The charger is IP65 rated, meaning it is dust-tight and protected against water jets, it also comes with multiple electrical safety features to ensure safe charging control. In addition, this intelligent charger is suitable for standby/parallel operation and can remain connected to a battery continuously. It will maintain its full charge, even if the battery is being charged/discharged at the same time.

• Fully automatic eight stage charging process
• Switch between 3 intelligent charging programs, each with two charging currents
• Maximum charge current is 2A
• 6/12V STD program for lead acid & lead gel batteries, 12V LFP for lithium iron phosphate batteries
• LED indicator flashes during charging process and is permanently green when battery is fully charged
• Reverse polarity, overcharge, deep discharge and short circuit protection
• Keyhole hanger for wall attachment
• Dimensions (HxWxD): 49x181x80mm

Contents

Charger, Clamp adaptor cable, Ring terminal adaptor cable, Cable ties, User guide.
