ABX00046

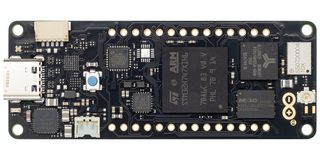

SBC, Arduino Portenta H7 Lite Connected, STM32H747XI, 32bit, ARM Cortex-M7, 8MB RAM, 16MB Flash
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | ABX00046Copy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 3874816 |
| Your Part Number | |
| Technical Datasheet |
14 In Stock
Need more?
14 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$80.530 (S$87.7777) |
Price for:Each
Minimum: 1
Multiple: 1
S$80.53 (S$87.78 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | ABX00046Copy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 3874816 |
| Technical Datasheet | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Family Name | STM32 |
| No. of Bits | 32bit |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F, Cortex-M7F |
| Silicon Core Number | STM32H747XI |
| Kit Contents | Portenta H7 Dev Board STM32H747XI |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
Portenta H7 Lite connected dev board is designed to provide the computational power of the Portenta H7 for AI applications and low-latency control solutions, with a module that is made more cost-effective by removing the high-resolution video interface feature. It fills the gap between the full H7 and the H7 Lite versions by integrating wireless connectivity, adding yet another option for Arduino Pro clients to build the perfect solution with the right combination of performance and simplicity.
- STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU
- Ethernet, Wi-Fi, BLE connectivity
- 2.95μA current consumption in standby mode (Backup SRAM OFF, RTC/LSE ON)
- 22x timers and watchdogs, 4x UART ports (2 with flow control)
- 10/100Mbps Ethernet (through expansion port only)
- Two 80 pin connectors will expose all of the module's peripherals to other devices
- 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS), 2× 12-bit DAC (1 MHz)
Technical Specifications
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| No. of Bits | 32bit |
| Core Sub-Architecture | Cortex-M4F, Cortex-M7F |
| Kit Contents | Portenta H7 Dev Board STM32H747XI |
| SVHC | No SVHC (27-Jun-2024) |
| Silicon Family Name | STM32 |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | STM32H747XI |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .036 |
