| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | ASX00074Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4732651 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$80.970 (S$88.2573) |
Product Information
| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | ASX00074Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4732651 |
| Technical Datasheet | |
| Silicon Manufacturer | Truesense |
| Silicon Family Name | - |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M33 |
| Silicon Core Number | DCU150 |
| Kit Contents | Portenta UWB Shield Board DCU150 |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

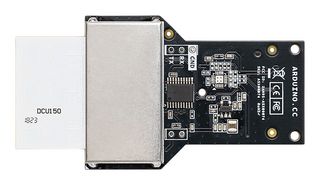

ASX00074 is an Arduino® Portenta UWB Shield based on the Truesense DCU150 module. It is a versatile Ultra-Wideband (UWB) communication solution. It integrates with the Arduino Portenta C33 board via its High-Density connectors and functions as a base station for two-way ranging and real-time location services (RTLS). The shield features the Truesense DCU150 module, which incorporates the NXP® Trimension™ SR150 UWB integrated circuit (IC), three embedded PCB antennas, onboard power management, clock control, filters and peripheral components. With 1.8 to 3.3 V DC level shifters and dual High-Density board-to-board connectors, it plugs directly into the Portenta C33 board. It is targeted for Smart logistics, precision proximity sensing, high precision RTLS, industrial applications, access control and secure payments.
- Connectivity: UWB CH5, CH6, CH8, CH9
- Level shifter: 1.8 to 3.3V DC
- External 3.3V DC power supply connected through dual high-density board-to-board connectors
- Shielding Can: On top of DCU150 module, enhancing the anti-interference performance of the module
- Dimensions: 70.1mm x 37.5mm
Technical Specifications
| Silicon Manufacturer | Truesense |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | DCU150 |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Family Name | - |
|---|---|
| Core Sub-Architecture | Cortex-M33 |
| Kit Contents | Portenta UWB Shield Board DCU150 |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85176200 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | To be advised |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0236 |
