AES-ARDUINO-CC-G
Evaluation Kit, MicroZed Carrier Card Kit, For MicroZed SoM Boards, Arduino Compatible

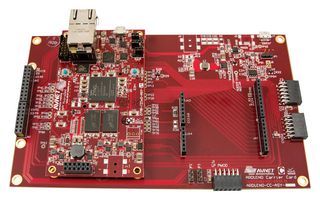

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | AVNET |
|---|---|
| Manufacturer Part No | AES-ARDUINO-CC-GCopy |
| Order Code | 2915532 |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | AVNET |
|---|---|
| Manufacturer Part No | AES-ARDUINO-CC-GCopy |
| Order Code | 2915532 |
| Technical Datasheet | |
| Silicon Manufacturer | - |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | - |
| Silicon Family Name | - |
| For Use With | MicroZed SOM & Arduino Development Boards |
| Kit Contents | MicroZed Carrier Card Kit |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview
MicroZed™ carrier card kit for Arduino™ brings both shield expansion and peripheral module expansion (2x6 pin connectors) to the MicroZed system-on-module. The carrier card is ideal for building quick prototypes that leverage the large number of Arduino-compatible Shields.
- Carrier card support for MicroZed SOMs
- Full Arduino-compatible shield site with connection to MicroZed PL I/O
- Partial Arduino-compatible shield site for connection to optional low-power MCU sub-system
- Supports MCU ON/OFF control of MicroZed power
- Enables off-loading of MicroZed tasks to the low-power MCU
- Facilitates low-power sensor hub functionality, autonomous from MicroZed application processor
- Supports interface for PS based SDIO/SPI, I2C/UART and PL based I/O
Contents
MicroZed™ carrier card kit for Arduino, MicroUSB cable, Downloadable Zynq based reference design.
Technical Specifications
| Silicon Manufacturer | - |
|---|---|
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | MicroZed Carrier Card Kit |
| SVHC | To Be Advised |
| Core Architecture | - |
|---|---|
| Silicon Core Number | - |
| For Use With | MicroZed SOM & Arduino Development Boards |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .308896 |
