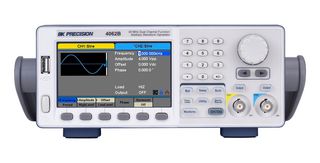

BK4062B
Function/Arbitrary Waveform Generator, Dual Channel, 40MHz, 3 Year Warranty
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | B&K PRECISION |
|---|---|
| Manufacturer Part No | BK4062BCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 3297749 |
| Product Range | 4060B Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$2,209.730 (S$2,408.6057) |
| 3+ | S$2,126.870 (S$2,318.2883) |
| 5+ | S$1,993.940 (S$2,173.3946) |
Price for:Each
Minimum: 1
Multiple: 1
S$2,209.73 (S$2,408.61 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | B&K PRECISION |
|---|---|
| Manufacturer Part No | BK4062BCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 3297749 |
| Product Range | 4060B Series |
| Technical Datasheet | |
| Signal Generator Type | Arbitrary, Function |
| No. of Channels | 2 Channel |
| Product Range | 4060B Series |
| Bandwidth | 40MHz |
| Signal Generator Modulation | AM, ASK, DSB-AM, FM, FSK, PM, PSK |
| Manufacturer Warranty | 3 Years |
| Plug Type | - |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview
The BK4062B is a 4060B series dual channel function/arbitrary waveform generator capable of producing precise sine, square, triangle, pulse and arbitrary waveforms.
- 16bit resolution, 8Mpts, 300MSa/s (DDS), 75MSa/s (true point-by-point) arbitrary waveform generator
- Up to 1.2GSa/s sample rate for sine, square, triangle and pulse waveforms
- Two independent channels with one-button phase synchronization
- Channel copy, track and waveform combine functions
- Generate sine waves up to 120MHz, linear sweep, logarithmic sweep and burst functions
- Precise pulse width and rise/fall time adjustments, AM/DSB-AM/FM//PM/PSK/FSK/ASK/PWM modulation
- 196 built-in predefined arbitrary waveforms, store/recall up to 10 instrument settings
- Store/recall up to 10 instrument settings
- LAN and USB device port
- GPIB connectivity, front-panel USB host port
Contents
Dual channel function/arbitrary waveform generator, AC power cord, User manual (downloadable), USB type A-to-B cable, BNC coaxial cable, Certificate of calibration.
Technical Specifications
| Signal Generator Type | Arbitrary, Function |
|---|---|
| Product Range | 4060B Series |
| Signal Generator Modulation | AM, ASK, DSB-AM, FM, FSK, PM, PSK |
| Plug Type | - |
| No. of Channels | 2 Channel |
|---|---|
| Bandwidth | 40MHz |
| Manufacturer Warranty | 3 Years |
| SVHC | No SVHC (07-Nov-2024) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85432000 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 3.8 |
