BTHQ42005VSS-STF-LED04
Alphanumeric LCD, 20 x 4, Black on Yellow / Green, 5V, Parallel, English, Japanese, Transflective

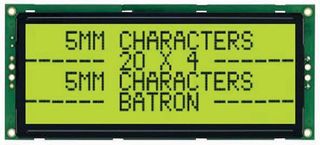

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BATRON |
|---|---|
| Manufacturer Part No | BTHQ42005VSS-STF-LED04Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 9448810 |
| Product Range | BTHQ42005VSS |
| Your Part Number | |
| Technical Datasheet |
61 In Stock
Need more?
61 Delivery in 3-4 Business Days(UK stock)
Available until stock is exhausted
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$62.400 (S$68.016) |
| 5+ | S$58.300 (S$63.547) |
| 10+ | S$54.250 (S$59.1325) |
Price for:Each
Minimum: 1
Multiple: 1
S$62.40 (S$68.02 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BATRON |
|---|---|
| Manufacturer Part No | BTHQ42005VSS-STF-LED04Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 9448810 |
| Product Range | BTHQ42005VSS |
| Technical Datasheet | |
| Character Count x Line | 20 x 4 |
| Display Appearance | Black on Yellow / Green |
| Logic Voltage | 5V |
| Interface Type | Parallel |
| Font Set | English, Japanese |
| Display Mode | Transflective |
| Character Size | 4.7mm |
| LCD Display Type | STN |
| Module Size | 98mm x 60mm |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 50°C |
| Display Construction | COB |
| Backlighting Colour | Yellow / Green |
| Product Range | BTHQ42005VSS |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
The BTHQ42005VSS-STF-LED04 is a 20-character (5 x 8 dots) x 4 lines STN positive G-yellow transflective LCD Character Module with 6 O'clock direction viewing angle and 1/16 duty, 1/5 bias driving scheme. 'SAMSUNG' KS0066UP-1OBCC (die form) LCD controller and driver or equivalent. 'SAMSUNG' KSOO65B-PC C (die form) LCD segment drivers or equivalent.
- Yellow-green LED04 backlight
Applications
Industrial, Imaging, Video & Vision
Technical Specifications
| Character Count x Line | 20 x 4 |
|---|---|
| Logic Voltage | 5V |
| Font Set | English, Japanese |
| Character Size | 4.7mm |
| Module Size | 98mm x 60mm |
| Operating Temperature Max | 50°C |
| Backlighting Colour | Yellow / Green |
| SVHC | No SVHC (27-Jun-2024) |
| Display Appearance | Black on Yellow / Green |
|---|---|
| Interface Type | Parallel |
| Display Mode | Transflective |
| LCD Display Type | STN |
| Operating Temperature Min | 0°C |
| Display Construction | COB |
| Product Range | BTHQ42005VSS |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .073 |
