09 0313 00 05

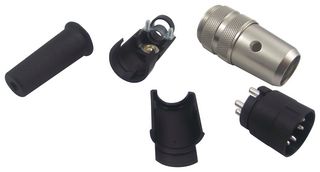

Circular Connector, Miniature Circular Connector, 680 Series, Cable Mount Plug, 5 Contacts
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 09 0313 00 05Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122585 |
| Product Range | 680 Series |
| Your Part Number | |
| Technical Datasheet |
683 In Stock
Need more?
683 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$23.390 (S$25.4951) |
| 10+ | S$22.950 (S$25.0155) |
| 100+ | S$22.500 (S$24.525) |
| 250+ | S$22.050 (S$24.0345) |
| 500+ | S$21.610 (S$23.5549) |
| 1000+ | S$21.170 (S$23.0753) |
Price for:Each
Minimum: 1
Multiple: 1
S$23.39 (S$25.50 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 09 0313 00 05Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122585 |
| Product Range | 680 Series |
| Technical Datasheet | |
| Connector Type | Miniature Circular Connector |
| Product Range | 680 Series |
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | 5Contacts |
| Circular Connector Contact Type | Solder Pin |
| Coupling Style | - |
| Connector Body Material | Nylon (Polyamide) Body |
| Connector Body Plating | - |
| Contact Material | Brass |
| Contact Plating | Silver |
| IP Rating | IP40 |
| SVHC | Lead (25-Jun-2025) |
Product Overview
The 09 0313 00 05 from Binder is a miniature circular cable plug connector with 5 pin contacts. This connector has compact design and easy to assemble. The contact terminals ensure a secure connection even in the case of high vibration and impact loads. It has M16 screw locking facility according to DIN EN 61076-2-106 standard and provides good EMI characteristics.
- Cable outlet diameter of 3mm to 6mm
- Solder termination
- Wire gauge size is 0.75mm² (20AWG)
- IP40 degree of protection
- Temperature range from -40°C to 85°C
- Rated voltage of 250V
- Rated current of 6A at 40°C
- Brass (CuZn) contacts with silver (Ag) plating
- UL94 V-0 rated polybutylene terephthalate (PBT) contact body
- UL94 HB rated polyamides (PA) housing
Applications
Industrial
Technical Specifications
| Connector Type | Miniature Circular Connector |
|---|---|
| Circular Connector Shell Style | Cable Mount Plug |
| Circular Connector Contact Type | Solder Pin |
| Connector Body Material | Nylon (Polyamide) Body |
| Contact Material | Brass |
| IP Rating | IP40 |
| Product Range | 680 Series |
|---|---|
| No. of Contacts | 5Contacts |
| Coupling Style | - |
| Connector Body Plating | - |
| Contact Plating | Silver |
| SVHC | Lead (25-Jun-2025) |
Technical Docs (3)
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .016 |
