09-3111-86-04

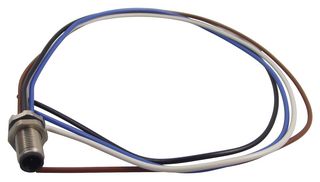

Circular Cable Assembly, M5 Sensor Plug to Free End, 4 Ways, 7.87 ", 200 mm
Image is for illustrative purposes only. Please refer to product description.
130 In Stock
Need more?
130 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$12.800 (S$13.952) |
| 50+ | S$12.510 (S$13.6359) |
| 100+ | S$12.130 (S$13.2217) |
| 250+ | S$11.820 (S$12.8838) |
| 500+ | S$11.560 (S$12.6004) |
Price for:Each
Minimum: 1
Multiple: 1
S$12.80 (S$13.95 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerBINDER
Manufacturer Part No09-3111-86-04
Order Code1437626
Technical Datasheet
Connector to ConnectorM5 Sensor Plug to Free End
No. of Positions4Ways
Cable Length - Imperial7.87"
Cable Length - Metric200mm
Jacket Colour-
Product Range-
SVHCLead (14-Jun-2023)
Product Overview
The 09-3111-86-04 is a male Panel Mount Connector with 0.14mm² single wire, screwed from front, CuZn (brass nickel-plated) housing, CuZn (brass) contact, Au (gold) contact plating and PA contact body.
- 26AWG Wire gauge
- 60V Rated voltage
- 800V Rated impulse voltage
- 1A Rated current (40°C)
- ≤3mΩ Volume resistivity
- <gt/>100 Mating cycles mechanical operation
- IP67 Protection rating
- -25 to 80°C Temperature range
Applications
Industrial
Technical Specifications
Connector to Connector
M5 Sensor Plug to Free End
Cable Length - Imperial
7.87"
Jacket Colour
-
SVHC
Lead (14-Jun-2023)
No. of Positions
4Ways
Cable Length - Metric
200mm
Product Range
-
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (14-Jun-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005216
