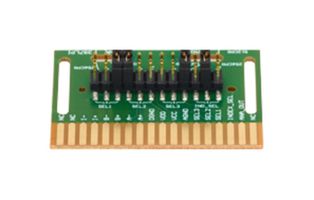

HEDS-9930E2LEVB
Evaluation Board, AEDR-9930E2L, Incremental Linear Encoder, 2 Units of Code Strip Bundling
| Manufacturer | BROADCOM |
|---|---|
| Manufacturer Part No | HEDS-9930E2LEVBCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4668459 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$122.970 (S$134.0373) |
| 5+ | S$121.260 (S$132.1734) |
Product Information
| Manufacturer | BROADCOM |
|---|---|
| Manufacturer Part No | HEDS-9930E2LEVBCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4668459 |
| Technical Datasheet | |
| Board Type | Evaluation Board |
| IC / Module Used | AEDR-9930E2L |
| Application Sub Type | Incremental Linear Encoder |
| Kit Contents | Evaluation Board AEDR-9930E2L, 2 Units of Code Strip Bundling |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
HEDS-9930E2LEVB is a linear encoder evaluation board with 2 units of code strip bundling. The Broadcom® AEDR-9930E2L is a three-channel reflective optical encoder. It provides digital signals by employing reflective technology for motion control purposes. The AEDR-9930E2L digital encoder offers two-channel (AB) quadrature digital outputs and a third channel digital index output. A selectable interpolation option is available for the three-channel digital differential A, B, and gated I outputs. Being TTL compatible, the outputs of the encoder can be interfaced with most of the signal processing circuitry. Therefore, the encoder provides easy integration and flexible design-in into existing systems. Applications include closed-loop stepper motors, small motors, actuators, industrial printers, robotics, card readers, pan-tilt-zoom (PTZ) cameras, portable medical equipment, optometric equipment and linear stages.
