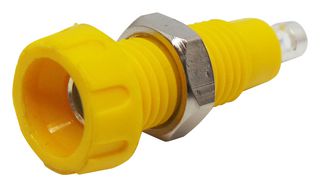

Banana Test Connector, 4mm, Socket, Panel Mount, 10 A, 50 V, Silver Plated Contacts, Yellow
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | DELTRON COMPONENTS |
|---|---|
| Manufacturer Part No | 563-0700-01Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 1101118 |
| Product Range | 563 Series |
| Also Known As | GTIN UPC EAN: 5056414505810 |
| Your Part Number | |
| Technical Datasheet |
667 In Stock
Need more?
667 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$7.060 (S$7.6954) |
| 5+ | S$6.690 (S$7.2921) |
| 10+ | S$6.340 (S$6.9106) |
| 20+ | S$6.030 (S$6.5727) |
Price for:Pack of 5
Minimum: 1
Multiple: 1
S$7.06 (S$7.70 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | DELTRON COMPONENTS |
|---|---|
| Manufacturer Part No | 563-0700-01Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 1101118 |
| Product Range | 563 Series |
| Also Known As | GTIN UPC EAN: 5056414505810 |
| Technical Datasheet | |
| Gender | Socket |
| Connector Mounting | Panel Mount |
| Current Rating | 10A |
| Voltage Rating | 50V |
| Contact Plating | Silver Plated Contacts |
| Connector Colour | Yellow |
| Contact Material | Brass |
| Contact Termination Type | Solder |
| Product Range | 563 Series |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview
The 563-0700-01 is a 4mm panel-mount Socket with solder bucket connection. It has yellow polypropylene insulant, silver-plated BS2874 brass pin and nut. Rigid panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs and it is suitable for panel up to 13.5mm thick.
- Yellow 4mm Panel Socket - Solder Bucket Connection
- Panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs
- Suitable for panels up to 13.5mm thick
- Connection via a solder bucket
- Insulant: Polypropylene
- Pin: Brass BS2874 Silver Plated
- Nut: Brass BS2874 Nickel Plated
- Current Rating: 10 Amps
- Nominal Working Voltage: 250V RMS
- Contact Resistance: 10mΩ
- Maximum Temperature RTI: +147°C
- Minimum Temperature: -20°
- Recommended Temperature: 10A @ 55°C
- Voltage Breakdown: 5000V
- Conductor Size: 1.5mm²
- Fixing Torque: 0.4Nm
