557-1503-203F
LED Panel Mount Indicator, Watertight, Red, 12 VDC, 17.463 mm, 20 mA, 1000 foot lambert, Not Rated
No Longer Stocked
Product Information
Product Overview

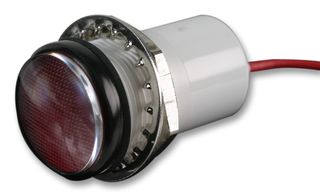

The 557-1503-203F is a high intensity panel-mount red watertight LED Indicator for 11/16-inch mounting hole. This indicator incorporates both InGaN and AlInGaP technologies to offer higher intensities. This is designed to withstand outdoor applications susceptible to rain, dust and sunlight.
- Watertight seal from front of panel meets MIL-L-3661B
- White polycarbonate housing
- Flat polycarbonate lens
- UL94V-0 Flammability rating
- Uniform illumination
- Daylight viewability
- Tamperproof/designed for high durability
Applications
LED Lighting, Aerospace, Defence, Military, Sensing & Instrumentation, Safety, Consumer Electronics, Automotive, Logistics, Avionics
Technical Specifications
| LED Colour | Red |
|---|---|
| Mounting Hole Dia | 17.463mm |
| Luminous Intensity | 1000foot lambert |
| Product Range | 557 |
| Operating Voltage | 12VDC |
|---|---|
| Forward Current If | 20mA |
| IP / NEMA Rating | Not Rated |
| SVHC | No SVHC (10-Jun-2022) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01134 |
