LED2472V20
Voltmeter, LED2472 Series, AC, DC Voltage, -19.99V to +19.99V, 3.5 Digits, 7.5 V to 12 V

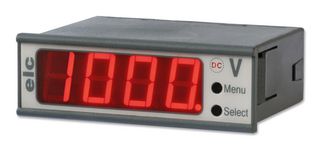

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | ELC |
|---|---|
| Manufacturer Part No | LED2472V20Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 1218425 |
| Also Known As | GTIN UPC EAN: 3760244880581 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$110.850 (S$120.8265) |
Price for:Each
Minimum: 1
Multiple: 1
S$110.85 (S$120.83 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ELC |
|---|---|
| Manufacturer Part No | LED2472V20Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 1218425 |
| Also Known As | GTIN UPC EAN: 3760244880581 |
| Technical Datasheet | |
| No. of Digits / Alpha | 3-1/2 |
| Meter Function | AC Voltage / DC Voltage |
| Meter Range | -19.99V to +19.99V |
| Digit Height | 14mm |
| Panel Cutout Height | 22.5mm |
| Panel Cutout Width | 68.8mm |
| Supply Voltage Min | 7.5V |
| Supply Voltage Max | 12V |
| Operating Temperature Min | - |
| Operating Temperature Max | - |
| Product Range | - |
| SVHC | No SVHC (17-Jan-2023) |
Product Overview
The LED2472V20 is a 24 x 72mm 3-digit 20V Digital Voltmeter with disconnect screw terminal blocks. The meter with 2.5mm² plug-in connector, two clips on its sides that allow a fast assembly without tools on any surface with a thickness included between 0.8 and 5mm and measurement input (e-) and power supply-grounds are common.
- Red anti-reflection filter
- Button in front of panel
Applications
Metering, Test & Measurement, System Monitoring, Automation & Process Control
Notes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Technical Specifications
| No. of Digits / Alpha | 3-1/2 |
|---|---|
| Meter Range | -19.99V to +19.99V |
| Panel Cutout Height | 22.5mm |
| Supply Voltage Min | 7.5V |
| Operating Temperature Min | - |
| Product Range | - |
| Meter Function | AC Voltage / DC Voltage |
|---|---|
| Digit Height | 14mm |
| Panel Cutout Width | 68.8mm |
| Supply Voltage Max | 12V |
| Operating Temperature Max | - |
| SVHC | No SVHC (17-Jan-2023) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | France Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (17-Jan-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .07 |
