2-5700-IG1-P10-DD-000040 1A

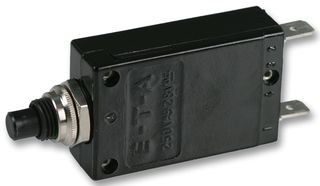

Thermal Circuit Breaker, 2-5700 Series, 1 A, 1 Pole, 50 VDC, 250 VAC, Panel
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$46.190 (S$50.3471) |
| 2+ | S$43.640 (S$47.5676) |
| 3+ | S$41.100 (S$44.799) |
| 5+ | S$38.610 (S$42.0849) |
| 10+ | S$35.470 (S$38.6623) |
| 20+ | S$34.620 (S$37.7358) |
Product Overview
The 2-5700 series single-pole thermal Circuit Breaker with press-to-reset, tease-free, trip-free and snap action mechanism. It is available with optional manual release (-H), type 2-5700 can be supplied as a push-push switch/circuit breaker (R-type to CBE to EN 60934 in press-to-reset configuration, M-type when fitted with manual release -H, S-type with push-push operation). Fitted with flange or thread-neck for panel mounting. Options include an additional unprotected circuit tap (-A3). It is suitable for use with transformers, solenoids, battery chargers, appliances, machinery and extra low voltage systems.
- <gt/>100MΩ at 500VDC Insulation resistance
- IP40/IP00 Protection rating
- -20 to 60°C Ambient temperature range
Applications
Motor Drive & Control, Power Management, Consumer Electronics, Industrial
Technical Specifications
1A
50VDC
Panel
1 Pole
250VAC
Technical Docs (1)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Tunisia
