M20-9990246
Pin Header, Straight, Board-to-Board, 2.54 mm, 1 Rows, 2 Contacts, Through Hole, M20 Series

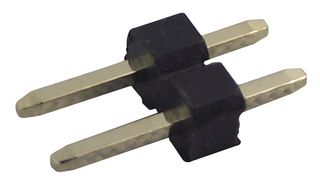

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARWIN
Manufacturer Part NoM20-9990246Copy
Manufacturer Standard Lead Time16 weeks
Order Code1022247
Product RangeM20 Series
Your Part Number
24,451 In Stock
36,000 more incoming. You can reserve stock now
24,451 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 100+ | S$0.094 (S$0.1025) |
| 1000+ | S$0.080 (S$0.0872) |
| 2500+ | S$0.076 (S$0.0828) |
| 5000+ | S$0.072 (S$0.0785) |
| 10000+ | S$0.068 (S$0.0741) |
| 20000+ | S$0.067 (S$0.073) |
Price for:Each
Minimum: 100
Multiple: 100
S$9.40 (S$10.25 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARWIN
Manufacturer Part NoM20-9990246Copy
Manufacturer Standard Lead Time16 weeks
Order Code1022247
Product RangeM20 Series
Technical Datasheet
Connector SystemsBoard-to-Board
Pitch Spacing2.54mm
No. of Rows1Rows
No. of Contacts2Contacts
Contact Termination TypeThrough Hole
Product RangeM20 Series
Connector ShroudUnshrouded
Contact MaterialBrass
Contact PlatingTin Plated Contacts
Connector TypePin Header
SVHCNo SVHC (04-Feb-2026)
Product Overview
M20-9990246 is a M20 series 2.54mm (0.1") pitch PCB connector.
- 2-position male SIL vertical through board connection
- Single row 3mm PC tail, 6.1mm mating pin length - 2 contacts
- Tin finish on contact area and termination
- Vertical connector orientation
- Operating temperature range from -40°C to +105°C
- 3A maximum current rating per contact
- Polyamide (nylon) 6T housing
- Black housing colour
- 3mm PC tail length
Technical Specifications
Connector Systems
Board-to-Board
No. of Rows
1Rows
Contact Termination Type
Through Hole
Connector Shroud
Unshrouded
Contact Plating
Tin Plated Contacts
SVHC
No SVHC (04-Feb-2026)
Pitch Spacing
2.54mm
No. of Contacts
2Contacts
Product Range
M20 Series
Contact Material
Brass
Connector Type
Pin Header
Alternatives for M20-9990246
8 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000116
