M80-5100642
Pin Header, Dual in Line, Wire-to-Board, 2 mm, 2 Rows, 6 Contacts, Through Hole Straight
448 more incoming. You can reserve stock now
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$19.550 (S$21.3095) |
| 10+ | S$16.070 (S$17.5163) |
| 25+ | S$15.040 (S$16.3936) |
| 100+ | S$14.000 (S$15.260) |
| 250+ | S$13.720 (S$14.9548) |
| 500+ | S$13.440 (S$14.6496) |
Product Information
Product Overview

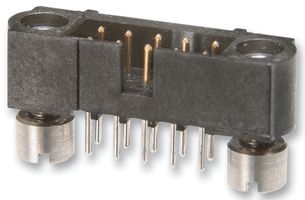

The M80-5100642 is a 6-contact male Datamate J-Tek DIL PCB Plug with black UL94V-0 PPS housing, gold plated phosphor bronze contacts and 100% tin over nickel plated termination. The M80 series connector has Jackscrews (with 3.5mm board mount), 3mm PC tail, vertical connector orientation, PC tail/through board connection type and M2 thread size. The connector is intended for use as a low voltage connector in high packing density electronic equipment. The connector is polarised to prevent mismatching and can be produced with a latching feature jackscrew (J-Tek) format, with or without board mounting.
- 3A (at 25°C), 2.2A (at 85°C) Current rating
- 800VAC/DC Working voltage
- 25mΩ Maximum contact resistance
- 100MΩ Minimum insulation resistance
- 500 operations Durability
Applications
Industrial
Technical Specifications
Wire-to-Board
2Rows
Through Hole Straight
Shrouded
Gold Plated Contacts
No SVHC (25-Jun-2025)
2mm
6Contacts
Datamate J-Tek M80-5
Phosphor Bronze
PCB Header
