9465-90

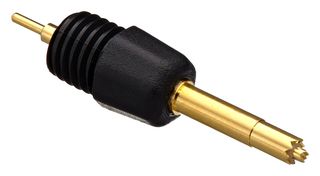

Replacement Tip Pin, 2.9 mm Diameter, 13.5 mm Length, Test Leads
Image is for illustrative purposes only. Please refer to product description.
60 In Stock
54 more incoming. You can reserve stock now
60 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$147.000 (S$160.230) |
Price for:Each
Minimum: 1
Multiple: 1
S$147.00 (S$160.23 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHIOKI
Manufacturer Part No9465-90
Order Code3262361
Technical Datasheet
Accessory TypeReplacement Tip Pin
Product Overview
9465-90 is a pogo-pin tip is a replacement part for the 9465-10 and L2020 test leads. It has a diameter of 2.9mm, a length of 13.5mm, and features gold plating. The tip has a coaxial design, with the centre forming the SENSE terminal and the outer edge forming the SOURCE terminal. Replacing the tip is quick and easy, ensuring consistent performance of the test leads. The pogo-pin tips are sold individually, so two tips are required to replace all tips of the 9465-10, 9465-11, and L2020 test leads. For the L2140 test lead, however, only one tip is needed.
- Tip dimension of diameter 2.9mm and length 13.5mm, 1mm stroke
Technical Specifications
Accessory Type
Replacement Tip Pin
For Use With
Hioki 9465-10, 9465-11, L2020 and L2140 Test Leads
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.1
