470 more incoming. You can reserve stock now
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$25.790 (S$28.1111) |
| 5+ | S$23.650 (S$25.7785) |
| 10+ | S$21.510 (S$23.4459) |
| 20+ | S$20.470 (S$22.3123) |
| 50+ | S$19.690 (S$21.4621) |
Product Overview

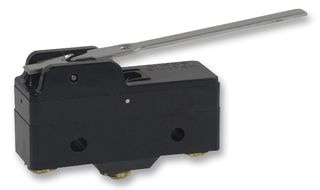

The BZ-2RW863-A2 is a single-pole double-throw (SPDT) premium large Standard Basic Microswitch with a 6-inch roller lever actuator, screw terminations and recommended lower force (without external return spring). The MICRO SWITCH™ BZ series standard basic switch is used for simple or precision ON/OFF application needs and also end of limit, presence/absence and manual operator interface functions. The snap action switch ganged together and actuated by a single actuator. Field adjustable operating point is an option for the switch.
- Low operating force and differential travel
- Long mechanical life up to 20000000 cycles at 95% survival
- Elongated mounting hole for easier, more accurate mounting
- Easy installation
- Tight hysteresis/differential travel
- Enhanced performance
Applications
Industrial, Aerospace, Defence, Military, Logistics, Consumer Electronics, Test & Measurement, Medical, HVAC
Technical Specifications
15A
BZ Series
0.28N
250V
480V
Technical Docs (2)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
