KIT_PSC3M5_MC1
Motor Control Kit, PSC3M5FDS2AFQ1, Motor Control/Drive Adapter Card, Power Board, USB Cable, Motor

| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | KIT_PSC3M5_MC1Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 4645785 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$526.580 (S$573.9722) |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | KIT_PSC3M5_MC1Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 4645785 |
| Technical Datasheet | |
| Application Sub Type | Motor Control |
| Silicon Manufacturer | Infineon |
| Kit Application Type | Power Management |
| Silicon Core Number | PSC3M5FDS2AFQ1 |
| Kit Contents | Motor Control Card, Drive Adapter Card, Power Board, USB Cable, Motor, Adapter, Quick Start Guide |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

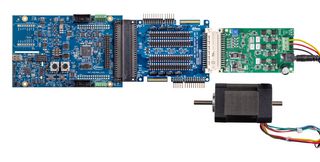

KIT_PSC3M5_MC1 is a PSOC™ control C3M5 complete system motor control kit. The PSOC™ control C3M5 motor control card is an evaluation board designed to help engineers in developing PSOC™ Control C3 based motor control solutions in combination with suitable power stage evaluation boards featuring the MADK connector (M1/M3/M5). The board features an isolated onboard debugger for programming and debugging over a USB interface. It also features a USB VCOM functionality using the same USB connection used for the debugger.
- PSOC Control C3M5 PSC3M5FDS2AFQ1
- Connection to MADK boards (M1, M3, M5)
- On-board debugger (SEGGER J-Link LITE)
- 2 user LED - User-controlled LED, 2 debug LED & Aux LED - debugger LEDs
- DB42S03 or DB42M03 brushless DC motor
- 24V/1A AC/DC power adapter
- Out-of-the-box configuration
- Sensorless FOC motor control
- Can be configured to run two motors, code examples to shorten development
- Modular setup to adapt new power boards
Contents
KIT-PSC3M5-CC2 motor control card, Drive adapter card, KITMOTORDC250W24VTOBO1 power board, USB Type-A to USB Type-C cable, Nanotec DB42S03 or DB42M03 24V BLDC motor, 24V/1 A AC/DC power adapter, Quick start guide.
Technical Specifications
| Application Sub Type | Motor Control |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Motor Control Card, Drive Adapter Card, Power Board, USB Cable, Motor, Adapter, Quick Start Guide |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Manufacturer | Infineon |
|---|---|
| Silicon Core Number | PSC3M5FDS2AFQ1 |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85437090 |
| US ECCN: | 3A991.a.2 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
