REF5GR4780AG6W1TOBO1

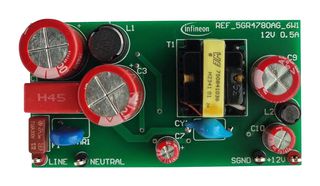

Reference Design Board, ICE5GR4780AG, Isolated Flyback Converter
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | REF5GR4780AG6W1TOBO1Copy |
| Manufacturer Standard Lead Time | 38 weeks |
| Order Code | 4335801 |
| Also Known As | REF5GR4780AG6W1, SP006016120 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$156.130 (S$170.1817) |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | REF5GR4780AG6W1TOBO1Copy |
| Manufacturer Standard Lead Time | 38 weeks |
| Order Code | 4335801 |
| Also Known As | REF5GR4780AG6W1, SP006016120 |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | ICE5GR4780AG |
| Kit Application Type | Power Management |
| Application Sub Type | Isolated Flyback Converter |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Reference Design Board ICE5GR4780AG |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
REF5GR4780AG6W1TOBO1 is a 6W (12V, 500mA) reference board designed in an isolated flyback converter topology using the fifth-generation FF CoolSET™ ICE5GR4780AG. The target applications of ICE5GR4780AG are either auxiliary power supplies for white goods, PCs, servers or TVs, or enclosed adapters for Blu-ray players, set-top boxes, gaming consoles, smart metering etc. With the 800 V CoolMOS™ integrated into this IC, it greatly simplifies the design and layout of the PCB. The new improved digital frequency reduction and frequency jitter features offer lower EMI and higher efficiency. The enhanced Active Burst Mode (ABM) power enables flexibility in standby power operation range selection. In addition, numerous adjustable protection functions have been implemented in ICE5GR4780AG to protect the system and customize the IC for the chosen application.
- Input voltage range from 85VAC to 264VAC
- Input frequency range from 47Hz to 63Hz
- 50mW no load input power
- 12V typ output voltage
- 0.5A output current
- 6W output power
- Output voltage accuracy of <lt/> ±5%
- Efficiency full load of 82% at 115V AC/ 230V AC
