REFWINLIFTTLE9855TOBO1
Reference Design Board, TLE9855QX, ARM, Cortex-M0, Automotive Window Lift System

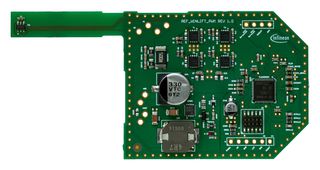

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | REFWINLIFTTLE9855TOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 4035705 |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$436.350 (S$475.6215) |
Price for:Each
Minimum: 1
Multiple: 1
S$436.35 (S$475.62 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | REFWINLIFTTLE9855TOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 4035705 |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | TLE9855QX |
| Kit Application Type | Sensing - Navigation, Position |
| Application Sub Type | Automotive Window Lift System |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M0 |
| Silicon Family Name | TLE98xx |
| Kit Contents | TLE9855 Reference Design Board |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
REFWINLIFTTLE9855TOBO1 is a reference design developed for 2-phase automotive window lift systems.
- Reference for EMC and board size
- Optimized BOM and PCB size
- Power capability up to 200W
- SWD port for debug connection
- LIN, panel and monitoring connector
- High-temperature FR4 PCB, 2-layer copper
- Small PCB size
