E9300A

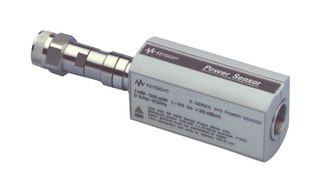

RF Power Sensor, 10MHz to 18GHz, -60dBm to +20dBm, 400 readings / second, N Type Plug, E Series
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | E9300ACopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 4008986 |
| Product Range | E Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 8 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$5,914.000 (S$6,446.260) |
Price for:Each
Minimum: 1
Multiple: 1
S$5,914.00 (S$6,446.26 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | E9300ACopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 4008986 |
| Product Range | E Series |
| Technical Datasheet | |
| Test Frequency Range | 10MHz to 18GHz |
| Power Measuring Range | -60dBm to +20dBm |
| Measurement Speed | 400 readings / second |
| RF Connector Type | N Type Plug |
| Product Range | E Series |
Product Overview
E9300A is a E-series average power sensor measures average power over the frequency range 10MHz to 18GHz and power range -60 to +20dBm (80dB dynamic range).
- Measure the average power of all modulation formats
- High maximum power specification
- Low SWR for reducing mismatch uncertainty
- Calibration factors, linearity and temperature compensation data stored in EEPROM
- Fast measurement speeds (up to 400 readings per second with the Keysight E4416A)
- Compatible with EPM, EPM-P and P-series power meters
Technical Specifications
| Test Frequency Range | 10MHz to 18GHz |
|---|---|
| Measurement Speed | 400 readings / second |
| Product Range | E Series |
| Power Measuring Range | -60dBm to +20dBm |
|---|---|
| RF Connector Type | N Type Plug |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90308900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .5 |
