WC-014-D
Thermocouple Wire, PTFE Insulated, Screened, 4 Core, Type RTD, 7 x 0.2mm, 25 m

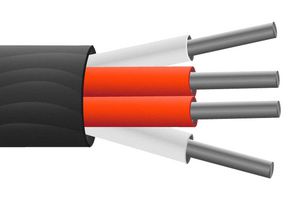

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLABFACILITY
Manufacturer Part NoWC-014-D
Order Code4073281
Also Known AsXF-1759-FAR
Your Part Number
2 In Stock
Need more?
2 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$537.810 (S$586.2129) |
| 5+ | S$517.520 (S$564.0968) |
| 10+ | S$507.170 (S$552.8153) |
| 25+ | S$496.820 (S$541.5338) |
| 50+ | S$486.470 (S$530.2523) |
| 100+ | S$476.120 (S$518.9708) |
Price for:Each
Minimum: 1
Multiple: 1
S$537.81 (S$586.21 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLABFACILITY
Manufacturer Part NoWC-014-D
Order Code4073281
Also Known AsXF-1759-FAR
Technical Datasheet
Thermocouple Wire TypeRTD
No. of Cores4Core
Length - Imperial82ft
Length - Metric25m
No. of Max Strands x Strand Size7 x 0.2mm
Reel Length (Imperial)82ft
Wire Gauge-
Conductor Area CSA0.219mm²
Conductor TypeStranded
Colour Code StandardIEC
InsulationPTFE (Polytetrafluoroethylene)
Operating Temperature Min-75°C
Operating Temperature Max260°C
Product Range-
SVHCNo SVHC (04-Feb-2026)
Product Overview
- PTFE insulated cable for extending platinum resistance thermometers
- High temperature to 260°C, wrapped PTFE tape construction
- Insulation rating -75°C to 260°C, can be used to extend 2, 3 or 4 wire RTD configurations
- Commonly used for Pt100Ω thermometers
- Also suitable with other types such as Pt130, Pt500 and Pt1000Ω
- 4 core PTFE insulated 7/0.2mm silver plated copper conductors, twisted cores
- Mylar tape, silver plated copper braided screen with PTFE insulated outer jacket
- Cores colour coded 2 x red / 2 x white to IEC-751 + black outer jacket
- Good mechanical strength and flexibility, resistant to oils, acids, other adverse fluids, steam, gas
- 25m reel length
Technical Specifications
Thermocouple Wire Type
RTD
Length - Imperial
82ft
No. of Max Strands x Strand Size
7 x 0.2mm
Wire Gauge
-
Conductor Type
Stranded
Insulation
PTFE (Polytetrafluoroethylene)
Operating Temperature Max
260°C
SVHC
No SVHC (04-Feb-2026)
No. of Cores
4Core
Length - Metric
25m
Reel Length (Imperial)
82ft
Conductor Area CSA
0.219mm²
Colour Code Standard
IEC
Operating Temperature Min
-75°C
Product Range
-
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85444995
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.8
