Product Overview

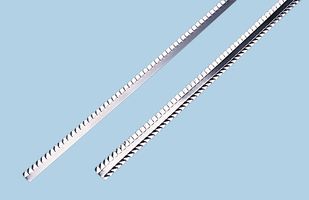

The CB1103T is a Copper Beryllium Finger Strip with tin-plated finish, provides a spring wiping action coupled with low electrical resistance. Strip provides excellent electromagnetic shielding and earthing when used on closure doors, cabinets and boxes, particularly where frequent opening and closing operations are involved. They are normally fixed into position with high tack adhesive but some models are suitable for edge mounting. They can also be soft soldered or resistance welded into position.
- Tin-plated finish
- -55 to 230°C Operating temperature
Applications
Industrial
Technical Specifications
| Shielding Type | Profile Strip |
|---|---|
| Product Length | 500mm |
| Product Depth | - |
| Gasket Material | Beryllium Copper |
|---|---|
| Product Width | 8.6mm |
| Product Range | CB |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01 |
