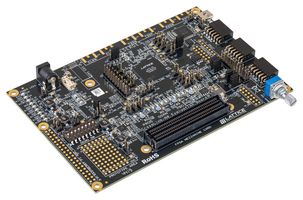

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | LATTICE SEMICONDUCTOR |
|---|---|
| Manufacturer Part No | LIFCL-40-EVNGCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4683956 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$187.010 (S$203.8409) |
Price for:Each
Minimum: 1
Multiple: 1
S$187.01 (S$203.84 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LATTICE SEMICONDUCTOR |
|---|---|
| Manufacturer Part No | LIFCL-40-EVNGCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4683956 |
| Technical Datasheet | |
| Silicon Manufacturer | Lattice Semiconductor |
| No. of Bits | - |
| Silicon Family Name | CrossLink-NX |
| Core Architecture | FPGA |
| Core Sub-Architecture | - |
| Silicon Core Number | LIFCL-40-9BG400C |
| Kit Contents | Eval Brd LIFCL-40-9BG400C w/Demo Design, USB Cable, Power/Plug Adapters, Manual w/Software Info |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
LIFCL-40-EVNG is a CrossLink-NX evaluation board. This prototyping board with Abundant I/O, PCIe 5G SERDES, expansion headers and 40K logic cells. The more I/O access: 118 wide range I/O, 37 high-speed differential pair I/O, one PCIe 5G SERDES channel and most configuration pins accessible. Expandable usability: FPGA Mezzanine Card (FMC), Raspberry Pi, Digilent Peripheral Module (Pmod™), MIP' CSI-2, D-PHY and general purpose I/O expansion headers.
- USB-B connection for device programming and Inter-Integrated Circuit (PC) utility
- On-board boot flash: 128Mbit Serial Peripheral Interface (SPI) flash with quad read feature
- 8 input DIP switches, 4 push buttons, 3 Status LEDs and 14 LEDs for demo purposes
- Multiple reference clock sources
Technical Specifications
| Silicon Manufacturer | Lattice Semiconductor |
|---|---|
| Silicon Family Name | CrossLink-NX |
| Core Sub-Architecture | - |
| Kit Contents | Eval Brd LIFCL-40-9BG400C w/Demo Design, USB Cable, Power/Plug Adapters, Manual w/Software Info |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Bits | - |
|---|---|
| Core Architecture | FPGA |
| Silicon Core Number | LIFCL-40-9BG400C |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85437090 |
| US ECCN: | 4A994.i |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00001 |
