PC/HV/S/WF 100NF 1.5KV
Power Film Capacitor, Metallized PP, Axial Leaded, 0.1 µF, ± 20%, High Frequency, Through Hole

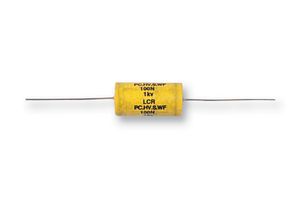

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | LCR COMPONENTS |
|---|---|
| Manufacturer Part No | PC/HV/S/WF 100NF 1.5KVCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 9520406 |
| Product Range | PC/HV/S/WF Series |
| Your Part Number | |
| Technical Datasheet |
527 In Stock
Need more?
527 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$5.240 (S$5.7116) |
| 50+ | S$3.650 (S$3.9785) |
| 100+ | S$3.320 (S$3.6188) |
| 250+ | S$3.080 (S$3.3572) |
| 500+ | S$2.830 (S$3.0847) |
| 1000+ | S$2.640 (S$2.8776) |
Price for:Each
Minimum: 1
Multiple: 1
S$5.24 (S$5.71 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LCR COMPONENTS |
|---|---|
| Manufacturer Part No | PC/HV/S/WF 100NF 1.5KVCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 9520406 |
| Product Range | PC/HV/S/WF Series |
| Technical Datasheet | |
| Dielectric Type | Metallized PP |
| Capacitor Case / Package | Axial Leaded |
| Capacitance | 0.1µF |
| Capacitance Tolerance | ± 20% |
| Typical Applications | High Frequency |
| Capacitor Mounting | Through Hole |
| Voltage(AC) | 450V |
| Voltage(DC) | 1.5kV |
| Humidity Rating | - |
| Capacitor Terminals | PC Pin |
| Lead Spacing | - |
| dv/dt Rating | 2kV/µs |
| Peak Current | - |
| RMS Current (Irms) | - |
| ESR | - |
| Product Diameter | 26.5mm |
| Product Length | - |
| Product Width | - |
| Product Height | - |
| Ripple Current | - |
| Output (kvar) | - |
| Product Range | PC/HV/S/WF Series |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 100°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The PC/HV/S/WF 100NF 1.5KV is an axial leaded low loss wound Film Capacitor with polypropylene dielectric. The PC/HV/S/WF series may be operated at high AC voltages and will withstand exceptionally high voltage rise time. The capacitor is particularly suitable for high frequency applications.
- 10mm Diameter
- -200ppm/°C Temperature coefficient
- 0.0005 Power factor
- <gt/>100000MΩ Insulation resistance
Applications
Power Management
Technical Specifications
| Dielectric Type | Metallized PP |
|---|---|
| Capacitance | 0.1µF |
| Typical Applications | High Frequency |
| Voltage(AC) | 450V |
| Humidity Rating | - |
| Lead Spacing | - |
| Peak Current | - |
| ESR | - |
| Product Length | - |
| Product Height | - |
| Output (kvar) | - |
| Operating Temperature Min | -55°C |
| Qualification | - |
| Capacitor Case / Package | Axial Leaded |
|---|---|
| Capacitance Tolerance | ± 20% |
| Capacitor Mounting | Through Hole |
| Voltage(DC) | 1.5kV |
| Capacitor Terminals | PC Pin |
| dv/dt Rating | 2kV/µs |
| RMS Current (Irms) | - |
| Product Diameter | 26.5mm |
| Product Width | - |
| Ripple Current | - |
| Product Range | PC/HV/S/WF Series |
| Operating Temperature Max | 100°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85322500 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .012 |
